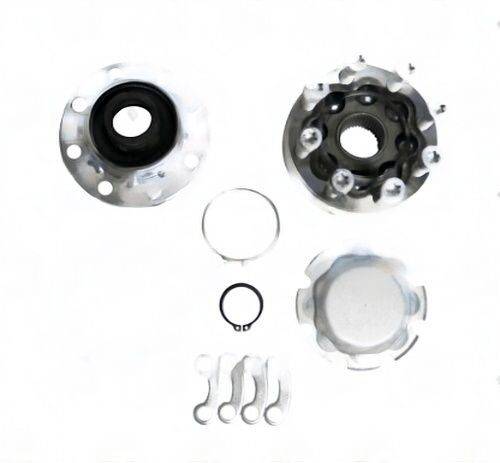

3152-1041 – CV Joint Kit – 30″ Splines dia – 39 Splines – Bolt Hole Dia 10
$187.30
10 in stock
15
People watching this product now!
Description
3152-1041 CV joint kit for Chrysler/Jeep 2015+ fixed rear. 30mm spline dia, 39 splines, 8-bolt 10mm holes, OD 104mm. Commonly used with 3142-1041.
Full Description
3152-1041 CV Joint Kit 30" Splines Dia 39 Splines Chrysler/Jeep 2015+ Fixed Rear
The 3152-1041 is a CV joint kit for Chrysler/Jeep 2015+ fixed rear applications, commonly used with part 3142-1041. It features a 30mm spline diameter with a 39-spline count, and an 8-bolt flange pattern with 10mm bolt hole diameter. The outer diameter is 104mm, outer race width 31mm, and inner race width 24mm. Gasket and boot cap are included.
Specifications
- Part Number: 3152-1041
- Splines Dia: 30mm
- Splines Count: 39
- Bolt Hole Count: 8
- Bolt Hole Dia: 10mm
- Outer Dia: 104mm
- Outer Race Width: 31mm
- Inner Race Width: 24mm
- Gasket: Y
- Boot Cap Part: Y
- Notes: Chrysler/Jeep 2015+ Fixed Rear commonly used w/3142-1041
When installing the 3152-1041, confirm 39 splines at 30mm on the axle stub—the 39-spline count is specific to 2015+ Chrysler/Jeep fixed rear configurations and will not interchange with earlier or differing spline counts. The 8-bolt flange with 10mm bolt hole diameter must match the companion flange; verify the bolt circle before assembly.
This kit is frequently paired with 3142-1041 on complete rear driveshaft assemblies for the 2015+ Chrysler/Jeep platform. The 104mm outer diameter and race widths of 31mm (outer) and 24mm (inner) define the housing geometry—confirm these against the differential or axle housing bore before ordering the 3152-1041.
Additional information
| Bolt hole count | 8 |
|---|---|
| Bolt hole dia | 10 |
| Splines count | 39 |
| Splines dia | 30 |
| Outer dia | 104 |
| Outer race width | 31 |
| Inner race width | 24 |
| Gasket | Y |
| Boot cap part | Y |
| Notes | Chrysler/Jeep 2015+ Fixed Rear commonly used w/3142-1041 |
| Partn number | 3152-1041 |
