3152-107 – CV Joint Kit – 28.5″ Splines dia – 26 Splines – Bolt Hole Dia 8.4
$170.37
4 in stock
20
People watching this product now!
Description

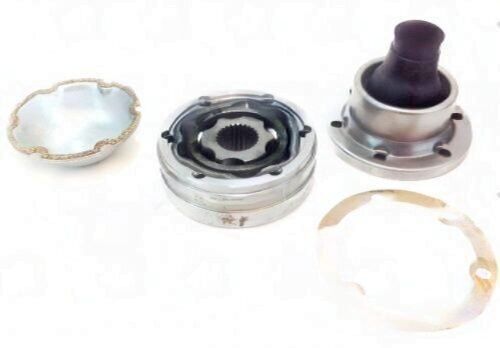

3152-107 CV joint kit. 28.5mm spline dia, 26 splines, 6-bolt 8.4mm hole dia, outer dia 104mm. Gasket and boot cap included. See 3190-107 if stub is also needed.
Full Description
3152-107 CV Joint Kit 28.5" Splines Dia 26 Splines Bolt Hole Dia 8.4
The 3152-107 is a CV joint kit with a 28.5mm spline diameter and 26-spline count. It mounts via a 6-bolt pattern with 8.4mm bolt hole diameter. The outer diameter measures 104mm, outer race width 35mm, and inner race width 33mm. Gasket and boot cap are included. Note that part number 3190-107 includes a stub shaft if the stub is also required.
Specifications
- Part Number: 3152-107
- Splines Dia: 28.5mm
- Splines Count: 26
- Bolt Hole Count: 6
- Bolt Hole Dia: 8.4mm
- Outer Dia: 104mm
- Outer Race Width: 35mm
- Inner Race Width: 33mm
- Gasket: Included
- Boot Cap Part: Included
- Notes: 3190-107 includes stub
When fitting the 3152-107, verify 26 splines at 28.5mm on the stub shaft before assembly. The 6-bolt flange pattern with 8.4mm bolt hole diameter must align with the companion flange; confirm the bolt circle dimension on the vehicle side. The outer race width of 35mm and inner race width of 33mm define the housing depth requirements.
If the stub shaft also requires replacement, order 3190-107 which includes the stub as a combined assembly. The 104mm outer diameter determines the housing bore requirement—confirm this against the knuckle or differential housing bore before ordering the 3152-107 kit.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.4 |
| Splines count | 26 |
| Splines dia | 28.5 |
| Outer dia | 104 |
| Outer race width | 35 |
| Inner race width | 33 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | 3190-107 includes stub |
| Partn number | 3152-107 |
