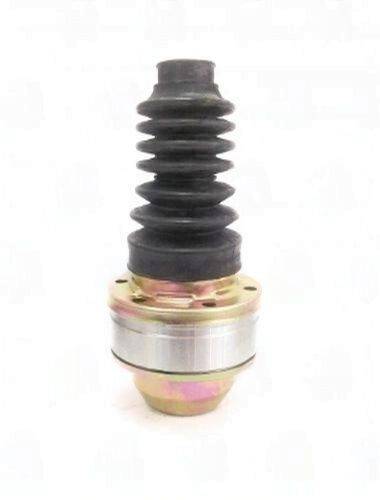

3152-1003 – CV Joint Kit – 28″ Splines dia – Bolt Hole Dia 8.7″ – 25 Spline
$166.31
0 in stock
13
People watching this product now!
Description
3152-1003 plunging style CV joint kit for Jeep Grand Cherokee and Liberty front differential. 28mm spline dia, 25 splines, 6-bolt 8.7mm holes, OD 100mm.
Full Description
3152-1003 CV Joint Kit 28" Splines Dia 25 Spline Jeep Grand Cherokee Liberty Front Differential
The 3152-1003 is a plunging style CV joint kit for the Jeep Grand Cherokee and Liberty front differential. It features a 28mm spline diameter with a 25-spline count, and a 6-bolt flange pattern with 8.7mm bolt hole diameter. The outer diameter is 100mm, outer race width 40mm, and inner race width 42mm. Gasket and boot cap are included.
Specifications
- Part Number: 3152-1003
- Splines Dia: 28mm
- Splines Count: 25
- Bolt Hole Count: 6
- Bolt Hole Dia: 8.7mm
- Outer Dia: 100MM
- Outer Race Width: 40mm
- Inner Race Width: 42mm
- Gasket: Included
- Boot Cap Part: Included
- Notes: Grand Cherokee, Liberty front differential, plunging style CV
When fitting the 3152-1003, confirm 25 splines at 28mm on the front differential stub shaft of the Grand Cherokee or Liberty. This is a plunging style CV joint, which allows axial travel—do not substitute a fixed CV joint in this position. The 6-bolt pattern with 8.7mm bolt hole diameter must match the flange on the front differential output.
The 100mm outer diameter and the wider inner race width of 42mm versus the 40mm outer race width are dimensional characteristics of this plunging design. Confirm the housing bore of 100mm and race seating dimensions against the knuckle before ordering the 3152-1003. Gasket and boot cap are included in the kit.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.7 |
| Splines count | 25 |
| Splines dia | 28 |
| Outer dia | 100MM |
| Outer race width | 40 |
| Inner race width | 42 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | Grand Cherokee, Liberty front differential, plunging style CV |
| Partn number | 3152-1003 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cv Joint Kit (28) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Splines count 24 Splines dia 20.3 Bolt hole dia 8.4 Outer dia 78 Outer race width 23.45 Inner race width 21 Bolt hole count 6 Gasket INCLUDED Boot cap part INCLUDED Notes Volvo Partn number 1452-7801 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole dia 8.4 Boot cap part 1418-86 Gasket INCLUDED Inner race width 22.1 Outer dia 86 Outer race width 21 Splines count 20 Splines dia 22.75 Partn number 1452-8601 Bolt hole count 6 Notes Volvo | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 8.4 Boot cap part 1418-86 Gasket N/A Inner race width 22.1 Outer dia 86 Outer race width 21 Splines count 21 Splines dia 23.75 Notes M8-1.25x40mm socket bolts Partn number 1452-8602 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 8.3 Boot cap part INCLUDED Gasket INCLUDED Inner race width 28.2 Outer dia 99.75 Outer race width 32 Splines count 25 Splines dia 28 Notes Audi Partn number 2552-1001 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 10.52 Boot cap part 2518-652 Gasket INCLUDED Inner race width 28.31 Outer dia 99.55 Outer race width 29.03 Splines count 25 Splines dia 27.98 Notes Porsche, VW Partn number 2552-1002 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 10.4 Boot cap part 2518-652 Gasket INCLUDED Inner race width 27.07 Outer dia 99.55 Outer race width 27.8 Splines count 32 Splines dia 26.92 Notes CADILLAC Partn number 2552-1003 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 10.4 Boot cap part INCLUDED Gasket INCLUDED Inner race width 28 Outer dia 108 Outer race width 32.2 Splines count 28 Splines dia 31.2 Partn number 2752-1081 Notes BMW | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 10.4mm Boot cap part INCLUDED Gasket INCLUDED Inner race width 26.1mm Outer dia 108mm Outer race width 28mm Splines count 34 Splines dia 28.35mm Notes Land Rover Partn number 2752-1091 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 8.3 Boot cap part INCLUDED Gasket INCLUDED Inner race width 24 Outer dia 94 Outer race width 32 Splines count 24 Splines dia 27 Notes BMW Partn number 2752-9401 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt hole count 6 Bolt hole dia 8.27 Boot cap part INCLUDED Gasket INCLUDED Inner race width 27.08 Outer dia 94 Outer race width 27.3 Splines count 30 Splines dia 24.19 Partn number 2752-942 Notes FITS JAGUAR, CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
