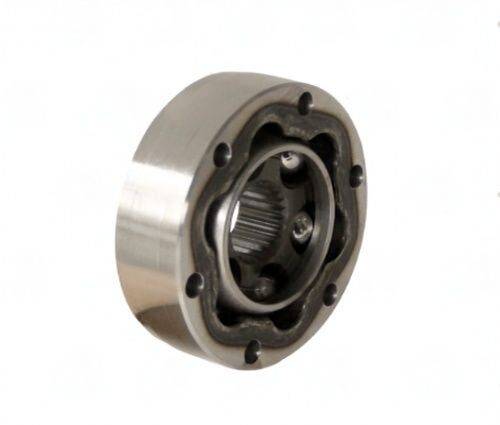

3152-1001 – CV Joint Kit – 28″ Splines dia – 25 Splines – Bolt Hole Dia 8.5
$172.50
5 in stock
12
People watching this product now!
Description
3152-1001 CV joint kit for Dodge applications. 28mm spline dia, 25 splines, 6-bolt 8.5mm holes, outer dia 99.8mm. Gasket and boot cap included.
Full Description
3152-1001 CV Joint Kit 28" Splines Dia 25 Splines Dodge Application
The 3152-1001 is a CV joint kit for Dodge applications. It features a 28mm spline diameter with a 25-spline count, and a 6-bolt flange pattern with 8.5mm bolt hole diameter. The outer diameter is 99.8mm, outer race width 30mm, and inner race width 23mm. Gasket and boot cap are included.
Specifications
- Part Number: 3152-1001
- Splines Dia: 28mm
- Splines Count: 25
- Bolt Hole Count: 6
- Bolt Hole Dia: 8.5mm
- Outer Dia: 99.8mm
- Outer Race Width: 30mm
- Inner Race Width: 23mm
- Gasket: Included
- Boot Cap Part: Included
- Notes: Dodge
When installing the 3152-1001, verify 25 splines at 28mm on the Dodge axle stub shaft before proceeding. The 6-bolt pattern with 8.5mm bolt hole diameter must align with the companion flange—confirm the bolt circle on the vehicle side. Note the 99.8mm outer diameter, which requires a matching housing bore.
The outer race width of 30mm and inner race width of 23mm define the seating depth in the housing. Cross-reference these dimensions against the Dodge application's housing specification. Compare the 3152-1001 against the similar 3152-1003 (100mm OD, 8.7mm bolt holes) if fitment is uncertain, as these are distinct kits with different dimensional profiles.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.5 |
| Splines count | 25 |
| Splines dia | 28 |
| Outer dia | 99.8 |
| Outer race width | 30 |
| Inner race width | 23 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | Dodge |
| Partn number | 3152-1001 |
