3052-9403 – CV Joint Kit – 27″ Splines dia – Bolt Hole Dia 8.35″ – 24 Spline
$161.07
0 in stock
18
People watching this product now!
Description

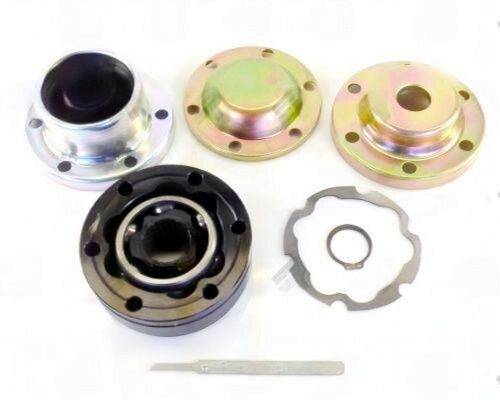

3052-9403 CV joint kit for Volvo applications. 27mm spline dia, 24 splines, 6-bolt 8.35mm holes, outer dia 94mm. Gasket and boot cap included.
Full Description
3052-9403 CV Joint Kit 27" Splines Dia 24 Spline Volvo Application
The 3052-9403 is a CV joint kit for Volvo applications. It features a 27mm spline diameter with a 24-spline count, and a 6-bolt flange pattern with 8.35mm bolt hole diameter. The outer diameter is 94mm, outer race width 32mm, and inner race width 24mm. Gasket and boot cap are included.
Specifications
- Part Number: 3052-9403
- Splines Dia: 27mm
- Splines Count: 24
- Bolt Hole Count: 6
- Bolt Hole Dia: 8.35mm
- Outer Dia: 94mm
- Outer Race Width: 32mm
- Inner Race Width: 24mm
- Gasket: Included
- Boot Cap Part: Included
- Notes: Volvo
When fitting the 3052-9403, confirm 24 splines at 27mm on the Volvo axle stub shaft. The 6-bolt flange pattern with 8.35mm bolt hole diameter must match the companion flange on the Volvo drivetrain—verify the bolt circle dimension before ordering. The 94mm outer diameter defines the housing bore requirement.
The outer race width of 32mm and inner race width of 24mm set the seating depth in the Volvo housing. Confirm these race dimensions against the knuckle or differential housing bore specification. Gasket and boot cap are included in the 3052-9403 kit, allowing complete assembly without additional sealing components.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.35 |
| Splines count | 24 |
| Splines dia | 27 |
| Outer dia | 94 |
| Outer race width | 32 |
| Inner race width | 24 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | Volvo |
| Partn number | 3052-9403 |
