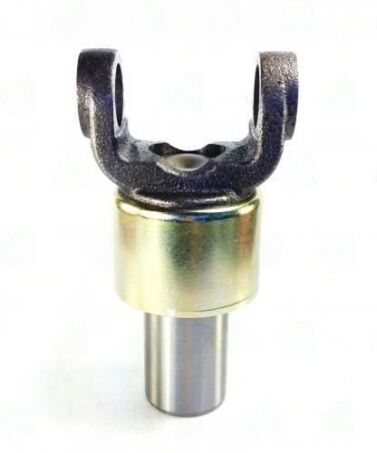

3103-243 – Transmission Yokes – 1310 Series – 23/24 X 1.082 Splines – 1.678″ Hub Dia
$94.11
1 in stock
Description
1310-series Mitsubishi transmission yoke with 23/24×1.082 splines, 1.678″ hub, and 6.000″ center-to-end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3103-243 |
| Series | 1310 (1.062" U-joint cap diameter) |
| Splines | 23/24 x 1.082" |
| Hub Diameter | 1.678" |
| Center U-Joint to End | 6.000" |
| Application | Mitsubishi |
- 0.750" longer C-to-end than the short version (3103-243M at 5.250"); measure your existing yoke before ordering
- 23/24-spline x 1.082" PD -- Mitsubishi-specific; not interchangeable with any domestic 24-spline specification
- 1.678" hub requires matching tailshaft seal; standard 1.500" seals will not seal this hub
- Inspect the Mitsubishi tailshaft bearing bore -- worn bores cause yoke wobble regardless of spline fit quality
- Pairs with 1310 U-joint at 1.062" cap diameter; Spicer 5-153X or equivalent
Mitsubishi transmission output shaft seals should be replaced any time the yoke is removed. The seals on these platforms are inexpensive and a worn seal that is reseated against a freshly polished hub will typically last only a fraction of its original service life. Source the seal by hub OD (1.678") and shaft diameter rather than by part number, as aftermarket seals vary slightly in casing OD.
Additional information
| Center u joint to end | 6.000 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.678 |
| Notes | Mitsubishi |
| Partn number | 3103-243 |
| Series | 1310 |
| Splines count dia | 23/24 X 1.082 |
