3103-23S MAZDA RX8 AUTO, machined shoulder off hub Transmission Yoke 1310
$78.46
2 in stock
Description

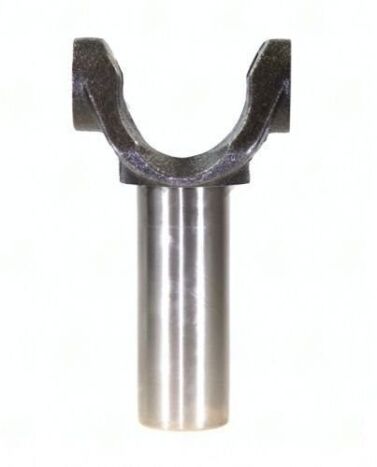

1310-series transmission yoke for Mazda RX-8 automatic with 23×1.201 splines, 1.575″ hub, and machined shoulder modification.
Full Description
- Part Number
- 3103-23S
- Series
- 1310 (1.062" U-joint cap diameter)
- Splines
- 23 x 1.201"
- Hub Diameter
- 1.575"
- Center U-Joint to End
- 5.750"
- Modification
- Machined shoulder removed from hub
- Application
- Mazda RX-8 automatic transmission
The Mazda RX-8 automatic uses a 23-tooth output shaft at 1.201" pitch diameter -- a specification used exclusively on Mazda platforms and not shared with Nissan, Toyota, or domestic applications. The "S" suffix indicates the shoulder has been machined off the hub, which is required because the RX-8 automatic tailshaft bore does not have clearance for the raised shoulder found on the base 3103-23 part. Installing the non-machined version will prevent the yoke from seating fully on the output shaft, leaving a gap at the seal housing and causing immediate oil leakage. Confirm your transmission is the automatic variant -- the RX-8 manual uses a different yoke specification. Pair with a 1310-series U-joint at the driveshaft forward end.
Additional information
| Center u joint to end | 5.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.575 |
| Notes | MAZDA RX8 AUTO, machined shoulder off hub |
| Partn number | 3103-23S |
| Series | 1310 |
| Splines count dia | 23 X 1.201 |
