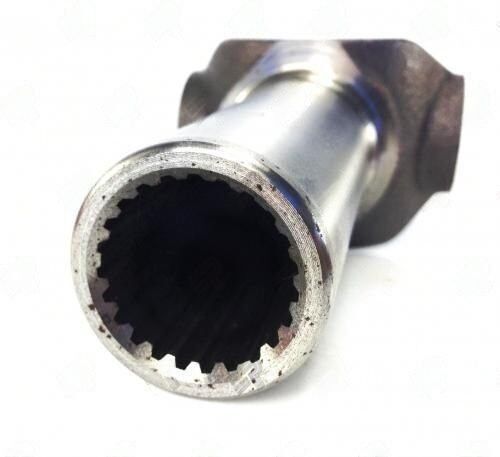

3103-23 This 1310 Transmission Yoke Fits Toyota & Lexus Automatic Transmissions from as early as 1989 until 2000 (Cressida, SC300)
$84.46
3 in stock
Description
1310-series transmission yoke for Toyota and Lexus automatic transmissions (1989-2000) with 23×1.201 splines and 5.750″ center-to-end.
Full Description
The 3103-23 covers Toyota and Lexus rear-wheel-drive automatic transmissions produced from approximately 1989 through 2000, including the Cressida, SC300, and related platforms. Toyota's A-series automatic output shafts in this period used a 23-spline, 1.201" pitch diameter specification -- the same tooth count as the Mazda RX-8 but with a different hub profile (no shoulder removal required on this version).
- 23-spline x 1.201" PD -- Toyota/Lexus A-series automatic; different from Toyota truck manual spec
- 1.575" hub OD -- source tailshaft seal by this dimension; Toyota factory seals are typically 1.575" ID
- 5.750" C-to-end -- stock driveshaft length for Cressida and SC300 rear-drive platforms
- No counterbore -- flat seating face; inspect seal housing for burrs before installation
- Pairs with 1310-series U-joint; replace both joint and yoke as a set on high-mileage vehicles
Tip: the SC300 and Cressida use different driveshaft tube diameters despite sharing the yoke spec -- confirm tube OD before ordering a replacement shaft. The yoke (3103-23) is identical for both, but the tube and rear yoke differ. The transmission yoke is the common first point of failure on high-mileage Toyota RWD platforms due to spline wear from insufficient lubrication.
Alternative parts:
Additional information
| Center u joint to end | 5.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.575 |
| Notes | Toyota applications. |
| Partn number | 3103-23 |
| Series | 1310 |
| Splines count dia | 23 X 1.201 |
