3-53-1951 Splined Midship Tube Shaft Splines: 1.500×16 , Fits: 3.000 X 0.083 Tube
$41.25
40 in stock
20
People watching this product now!
Description
3-53-1951 UDS splined midship shaft. Splines 15/16 x 1.500, fits 3.000 x 0.083″ tube, 1.574″ bearing journal. Verify slip yoke splines match before assembly.
Full Description

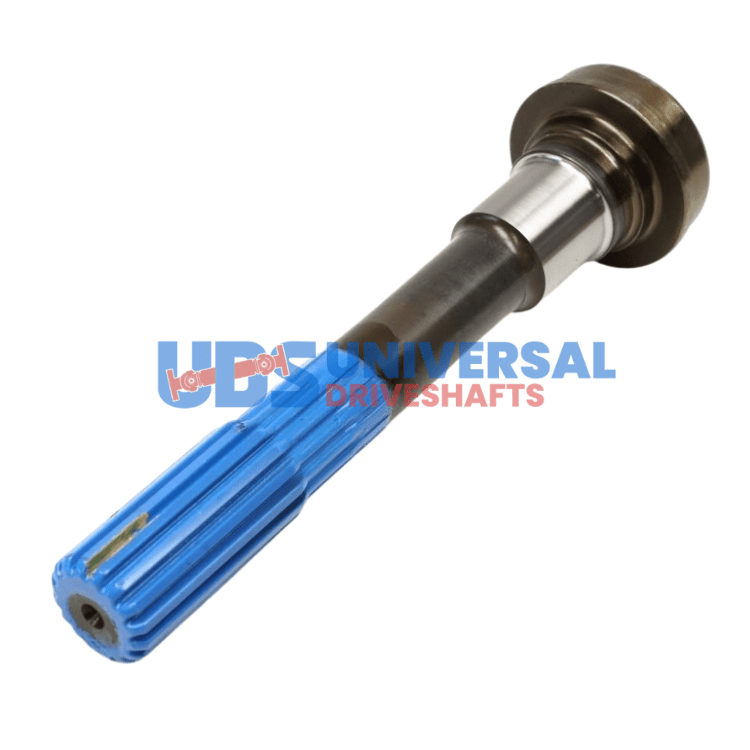

3-53-1951 UDS Splined Midship Tube Shaft
The 3-53-1951 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 15/16 x 1.500 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 3.000 x 0.083" tube with a butt diameter of 2.844 inches at the weld joint. The end-to-weld dimension is 10.625 inches. The 1.574-inch bearing journal accepts the center support bearing — verify the bearing inner bore matches this diameter. Note: Heavy Duty.
Specifications
- Part Number: 3-53-1951
- Brand: UDS
- Tube dia: 3.000
- Tube wall: 0.083"
- Butt dia: 2.844
- Splines length: 3.000
- End to weld: 10.625
- Bearing dia: 1.574
- Notes: Heavy Duty
- Style: Slip
- Splines count dia: 15/16 x 1.500
Fitment & Installation Notes
Verify the slip yoke splines match the 15/16 x 1.500 specification on the 3-53-1951 before assembly. The tube OD must be 3.000 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Tube dia | 3.000 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 2.844 |
| Splines length | 3.000 |
| End to weld | 10.625 |
| Bearing dia | 1.574 |
| Brand | UDS |
| Notes | Heavy Duty |
| Style | Slip |
| Splines count dia | 15/16 x 1.500 |
