90-28-27 Tube Weld Yoke SPL90 Fits TubeL 4.000×0.134 Butt Dia: 3.734
$54.35
30 in stock
17 People watching this product now!
Description
90-28-27 UDS SPL90 series steel weld tube yoke, butt 3.734″, CL-to-weld 2.969″, fits 4.000×0.134 tube. Verify tube OD and wall thickness before welding.
Full Description

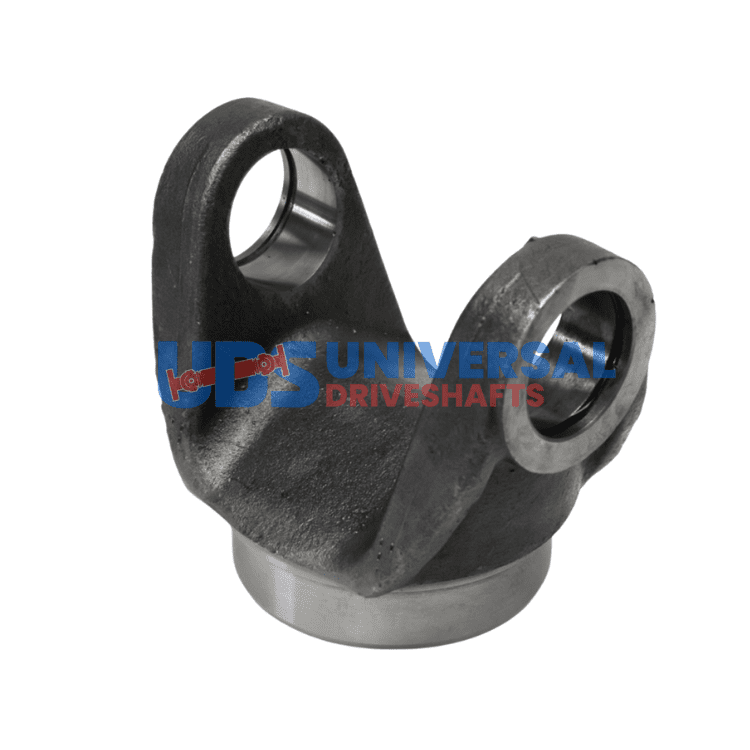

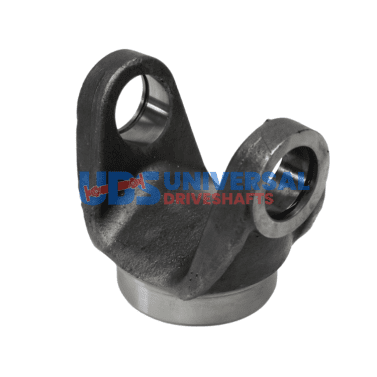

90-28-27 UDS SPL90 Series Weld Tube Yoke for 4.000x0.134 Tube
The 90-28-27 is a SPL90 series steel weld tube yoke manufactured by UDS. The butt diameter is 3.734" and the centerline-to-weld dimension is 2.969". It is designed for 4.000" OD x 0.134" wall tube.
Specifications
- Part Number: 90-28-27
- Brand: UDS
- Series: SPL90
- Butt Diameter: 3.734"
- Center UJ to Weld: 2.969"
- Tube Diameter x Wall: 4.000 x 0.134"
- Material: Steel
When preparing the 90-28-27 for welding, confirm the tube OD is 4.000" and the wall is 0.134". The 3.734" butt diameter is machined for this specific tube spec; a different wall thickness will change the tube's bore and affect the butt fit. The 2.969" CL-to-weld dimension must be factored into driveshaft assembly length calculations at this end.
The SPL90 series is a heavy industrial classification that positions this yoke above the 1610 and 1710 in the torque hierarchy. SPL90 components use larger cap dimensions than North American SAE series joints and are not interchangeable with 1480 or 1550 series yokes. Confirm the U-joint and companion yoke at this position are also SPL90 series before ordering the 90-28-27. Weld quality and tube concentricity are critical at this torque level — verify tube wall uniformity before welding.
Additional information
| Butt dia | 3.734 |
|---|---|
| Center u j to weld | 2.969 |
| Material | STEEL |
| Partn number | 90-28-27 |
| Series | SPL90 |
| Tube dia wall | 4.000X0.134 |
| Brand | UDS |
