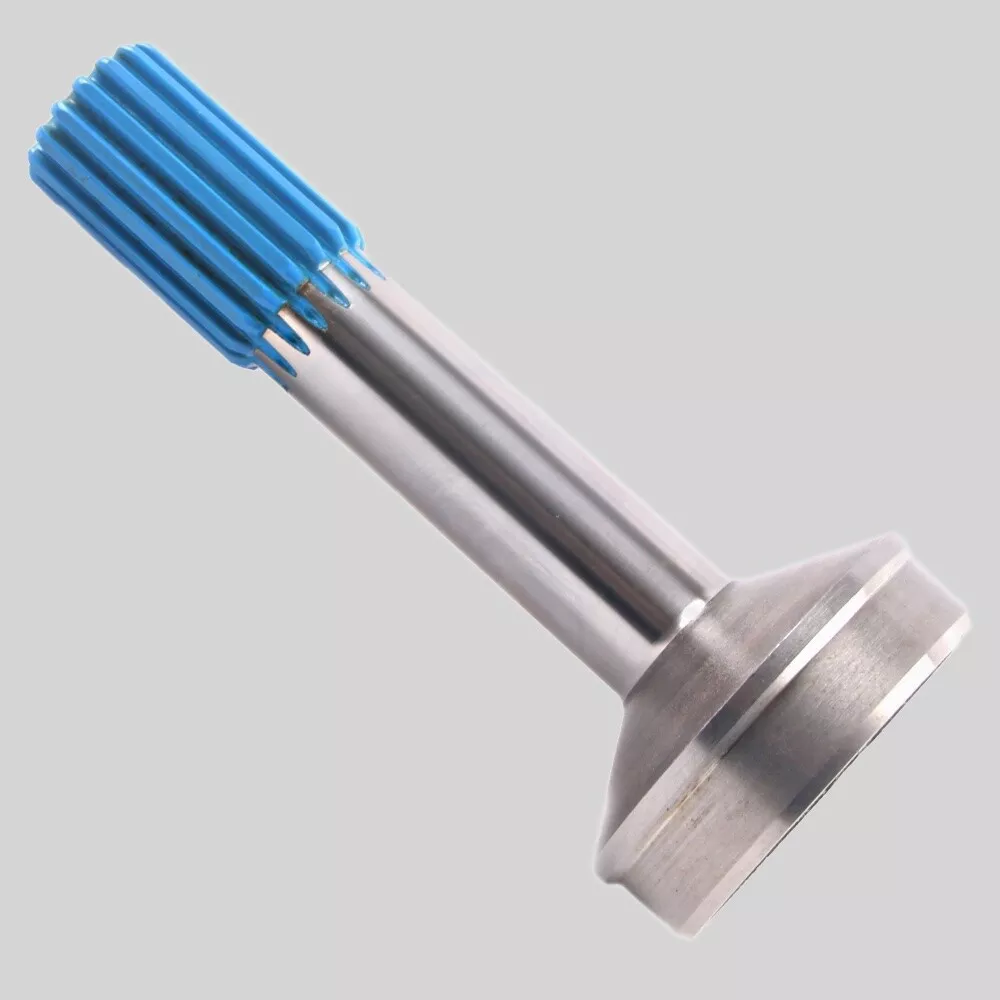

3-40-1561 Spline Stub Shaft 1.500 x 16 spline, Fits 3.500 X .083 Tube
$52.00
+50 in stock
12 People watching this product now!
Description
3-40-1561 splined stub shaft, 16-spline x 1.500″, fits 3.500×0.083 tube. Butt dia 3.344″, spline length 2.500″, end-to-weld 7.344″. Confirm spline length vs 3-40-1531 before welding.
Full Description
3-40-1561 Splined Stub Shaft – 16-Spline x 1.500", Fits 3.500 x 0.083 Tube, Use with Slip Yoke
The 3-40-1561 is a splined stub shaft (slip style) designed to weld onto 3.500" OD x 0.083" wall driveshaft tubing for use with a slip yoke. The spline configuration is 16 splines at 1.500" diameter with a spline engagement length of 2.500". Butt diameter is 3.344" and the end-to-weld length is 7.344".
Specifications
- Part Number: 3-40-1561
- Style: Slip
- Use With: Slip Yoke
- Tube OD: 3.500"
- Tube Wall: 0.083"
- Butt Diameter: 3.344"
- Splines Count x Diameter: 16 x 1.500"
- Splines Length: 2.500"
- End to Weld: 7.344"
When fitting the 3-40-1561, confirm tube OD is exactly 3.500" and wall thickness is 0.083" before welding. The butt diameter of 3.344" seats into the tube end. The mating slip yoke must have a 16-spline, 1.500" bore. The 7.344" end-to-weld dimension is longer than the 3-40-1531 variant (6.562") — verify this measurement against the driveshaft assembly drawing before welding.
The 2.500" spline length on the 3-40-1561 is shorter than the 3.000" on the 3-40-1531 — confirm which spline engagement length matches your slip yoke travel requirement. The slip yoke bore must be 16 x 1.500" to mate with this stub shaft.
Additional information
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.083″ |
| Butt dia | 3.344 |
| Splines length | 2.500 |
| End to weld | 7.344 |
| Style | Slip |
| Use with | Slip Yoke |
| Splines count dia | 16 x 1.500 |
