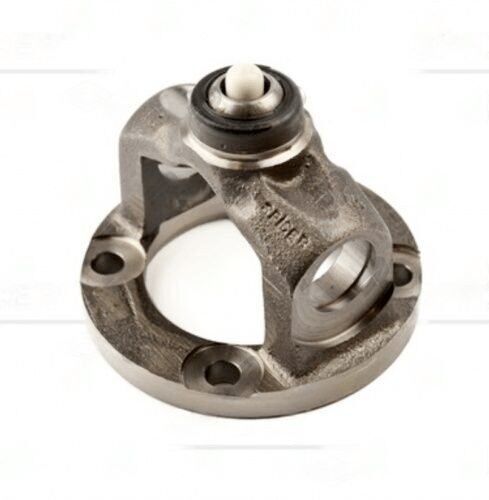

211606X – Cv Flange Yoke – Ball Stud Dia 0.5″ – Bolt Circle Dia 4″ – Bolt Hole Dia 453″
$352.22
6 in stock
12
People watching this product now!
Description
211606X SPICER 1330 LD class CV flange yoke. Ball stud 0.500″, bolt circle 4″ rectangular, pilot F-3.125″, CL-to-face 1.812″. Verify rectangular bolt circle before ordering.
Full Description
211606X SPICER 1330 Series CV Flange Yoke – Rectangular Bolt Circle, 3.125" Pilot
The 211606X is a SPICER 1330 series CV flange yoke in LD (light duty) class. Ball stud diameter is 0.500" and the bolt circle diameter is 4". Pilot diameter is 3.125" (F-type). CL-to-face dimension is 1.812". The bolt circle on this yoke is rectangular. A lube fitting is included.
Specifications
- Part Number: 211606X
- Brand: SPICER
- Series: 1330
- Class: LD
- Ball Stud Diameter: 0.500"
- Bolt Circle Diameter: 4"
- Bolt Hole Diameter: 0.453"
- Pilot Diameter: F-3.125"
- Pilot Type: F
- CL to Face: 1.812"
- Lube: Yes
- Notes: Rectangular bolt circle
When fitting the 211606X, confirm the companion flange pilot bore accepts the 3.125" (F-type) pilot and the rectangular bolt circle at 4" matches the mating flange layout. The rectangular bolt circle is a critical distinction — this is not a standard round bolt circle; verify the flange bolt pattern geometry matches before installation.
The 211606X is a genuine SPICER part. Cross-reference against the Spicer 1330 series catalog for the LD class CV flange yoke specification. Confirm the 0.500" ball stud diameter matches the mating CV socket bore before ordering.
Additional information
| Ball stud dia | 0.5 |
|---|---|
| Bolt circle dia | 4 |
| Bolt hole dia | 453 |
| Brand | SPICER |
| C l to face | 1.812 |
| Class | LD |
| Lube | Yes |
| Notes | Rectangular Bolt Circle |
| Partn number | 211606X |
| Pilot dia | 3.125 |
| Pilot type | F |
| Series | 1330 |
