211543X – Cv Flange Yoke – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.5″ – Bolt Hole Dia 484″

211543X SPICER 1310 Series CV Flange Yoke – LD, 3.5" Bolt Circle, 2.000" Pilot, Socket OD 1.625"

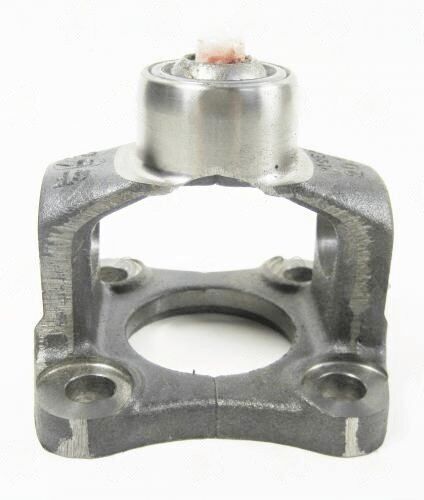

The 211543X is a SPICER 1310 series CV flange yoke in LD (light duty) class. Ball stud diameter is 0.500", bolt circle diameter is 3.5", and bolt hole diameter is 0.484". Pilot diameter is F-2.000" and CL-to-face is 1.625". The socket OD is 1.625". This unit is sealed — no lube fitting.

Specifications

• Part Number: 211543X
• Brand: SPICER
• Series: 1310
• Class: LD
• Ball Stud Diameter: 0.500"
• Bolt Circle Diameter: 3.5"
• Bolt Hole Diameter: 0.484"
• Pilot Diameter: F-2.000"
• Pilot Type: F
• CL to Face: 1.625"
• Socket OD: 1.625"
• Lube: No – sealed

When fitting the 211543X, confirm the companion flange pilot bore accepts the 2.000" (F-type) pilot — note this is a smaller pilot than the 211545X (3.125"). The bolt circle is 3.5" with 0.484" bolt holes. The 1.625" socket OD is the clearance dimension for the CV socket housing.

The 211543X uses a 2.000" pilot, distinguishing it from other SPICER 1310 LD CV flange yoke variants. Cross-reference against the Spicer catalog to confirm this is the correct pilot diameter for your application. Verify the 0.500" ball stud and 3.5" bolt circle against the mating CV housing before ordering.
