Brand:

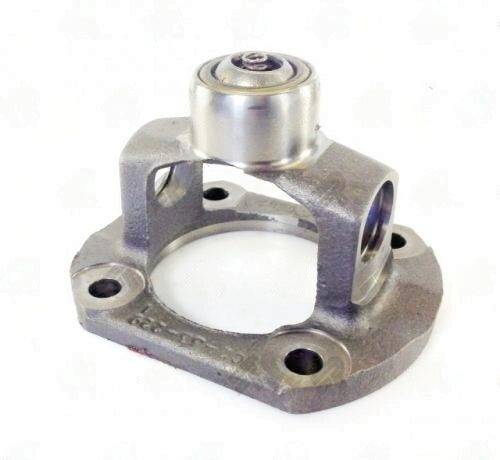

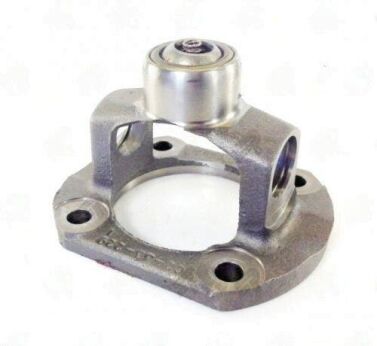

211545X – Cv Flange Yoke – Ball Stud Dia 0.5″ – Bolt Circle Dia 4.25″ – Bolt Hole Dia 453″
$121.68
Out of stock
18
People watching this product now!
Description
211545X SPICER 1310 LD class CV flange yoke. Ball stud 0.500″, bolt circle 4.25″, pilot F-3.125″, CL-to-face 1.625″, sealed. Verify bolt circle and pilot before ordering.
Full Description
211545X SPICER 1310 Series CV Flange Yoke – LD, 4.25" Bolt Circle, 3.125" Pilot
The 211545X is a SPICER 1310 series CV flange yoke in LD (light duty) class. Ball stud diameter is 0.500", bolt circle diameter is 4.25", and bolt hole diameter is 0.453". Pilot diameter is F-3.125" and CL-to-face is 1.625". This unit is sealed — no lube fitting.
Specifications
- Part Number: 211545X
- Brand: SPICER
- Series: 1310
- Class: LD
- Ball Stud Diameter: 0.500"
- Bolt Circle Diameter: 4.25"
- Bolt Hole Diameter: 0.453"
- Pilot Diameter: F-3.125"
- Pilot Type: F
- CL to Face: 1.625"
- Lube: No – sealed
When fitting the 211545X, confirm the companion flange pilot bore accepts the 3.125" (F-type) pilot and the bolt circle measures 4.25". The 0.453" bolt holes must align with the mating flange stud or bolt diameter. The 1.625" CL-to-face dimension is shorter than the 211606X (1.812") — confirm which length matches your driveshaft working length requirement.
The 211545X is a genuine SPICER part in LD class. Confirm the 0.500" ball stud diameter matches the mating CV socket bore. Cross-reference against the Spicer 1310 series CV flange yoke catalog before ordering.
Additional information
| Ball stud dia | 0.5 |
|---|---|
| Bolt circle dia | 4.25 |
| Bolt hole dia | 453 |
| Brand | SPICER |
| C l to face | 1.625 |
| Class | LD |
| Lube | No |
| Partn number | 211545X |
| Pilot dia | 3.125 |
| Pilot type | F |
| Series | 1310 |
