3-40-1531 Splined Stub Shafts , Splined : 1.5 X 16 , Fits: 3.500 X 0.083
$33.84
+50 in stock
19
People watching this product now!
Description
3-40-1531 splined stub shaft, 16-spline x 1.500″, fits 3.500×0.083 tube. Butt dia 3.344″, spline length 3.000″, end-to-weld 6.562″. Confirm tube OD and spline spec before welding.
Full Description

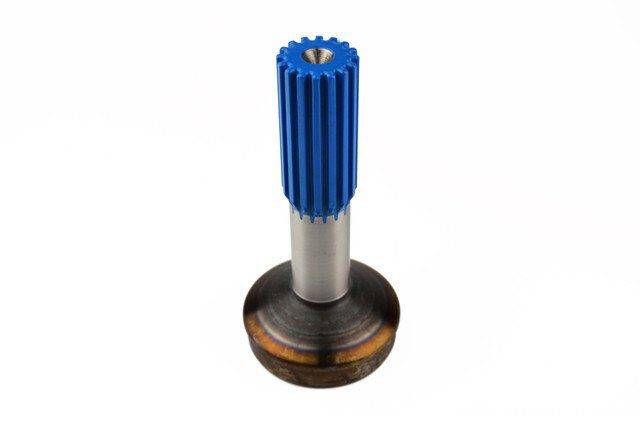

3-40-1531 Splined Stub Shaft – 16-Spline x 1.500", Fits 3.500 x 0.083 Tube
The 3-40-1531 is a splined stub shaft (slip style) designed to weld onto 3.500" OD x 0.083" wall driveshaft tubing. The spline configuration is 16 splines at 1.500" diameter with a spline engagement length of 3.000". Butt diameter is 3.344" and the end-to-weld length is 6.562".
Specifications
- Part Number: 3-40-1531
- Style: Slip
- Tube OD: 3.500"
- Tube Wall: 0.083"
- Butt Diameter: 3.344"
- Splines Count x Diameter: 16 x 1.500"
- Splines Length: 3.000"
- End to Weld: 6.562"
When fitting the 3-40-1531, confirm tube OD is exactly 3.500" and wall thickness is 0.083" before welding. The butt diameter of 3.344" must seat flush into the tube end. The mating slip yoke must have a 16-spline, 1.500" bore. The 3.000" spline engagement length and 6.562" end-to-weld measurement are critical for correct driveshaft working length after assembly.
The 3-40-1531 differs from the 3-40-1561 in spline length (3.000" vs 2.500") and end-to-weld dimension — verify which variant matches your driveshaft assembly specification. Confirm that the mating slip yoke spline bore matches 16 x 1.500" before welding this stub into the tube.
Additional information
| Partn number | 3-40-1531 |
|---|---|
| Tube dia | 3.500 |
| Tube wall | 0.083″ |
| Butt dia | 3.344 |
| Splines length | 3.000 |
| End to weld | 6.562 |
| Splines count dia | 16 x 1.500 |
| Style | Slip |
