FY1105165-1 1480 U JOINT / SPL55 Series Flange 150mm OD 8 Holes PILOT 3.544
$73.12
19 in stock
19
People watching this product now!
Description
FY1105165-1 flange yoke, 1310 series, 8-hole, pilot 1.492″, CJ-to-flat 1.125″. Measure companion flange pilot and bolt circle directly before ordering.
Full Description

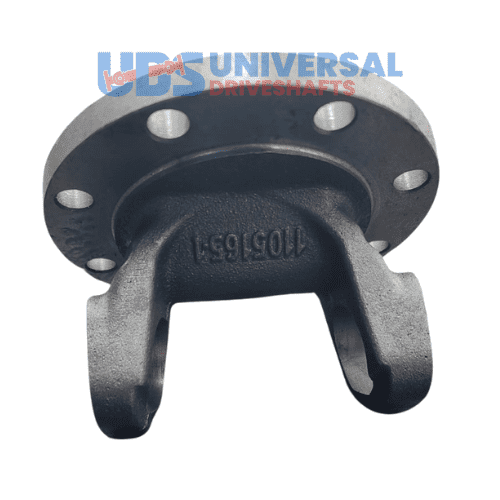

FY1105165-1 Flange Yoke – 1310 Series, 8-Hole, 1.492" Pilot, 1.125" CJ to Flat
The FY1105165-1 is a flange yoke in the 1310 series with 8 bolt holes and a pilot diameter of 1.492". The CJ-to-flat dimension is 1.125". This is a large-bolt-count flange yoke for heavy-duty flange connections on 1310 series drivelines. Note: the product listing references 1480/SPL55 series in the title — the series listed in the attributes is 1310; confirm the correct series with the actual cap and yoke dimensions for your application.
Specifications
- Part Number: FY1105165-1
- Series: 1310
- Pilot Diameter: 1.492"
- CJ to Flat: 1.125"
- Bolt Holes: 8
When fitting the FY1105165-1, verify the companion flange receiver pilot accepts the 1.492" pilot diameter. The 8-bolt hole configuration requires that the mating companion flange also has 8 holes at the corresponding bolt circle. The 1.125" CJ-to-flat dimension affects driveshaft working length.
Confirm the 8-hole bolt circle diameter and pilot against the transmission, transfer case, or axle companion flange specification before ordering. The FY1105165-1 has zero bolt circle and bolt hole data recorded in the attribute set — measure the companion flange pilot and bolt circle directly before ordering.
Additional information
| Pilot dia | 1.492 |
|---|---|
| Bolt circle dia | |
| Bolt hole dia | |
| Cj to flat | 1.125 |
| Series | 1310 |
| Bolt Holes | 8 |
