2903-30 Chrysler, Dodge, and Ram transmissions with 30-spline
$76.98
18 in stock
Description

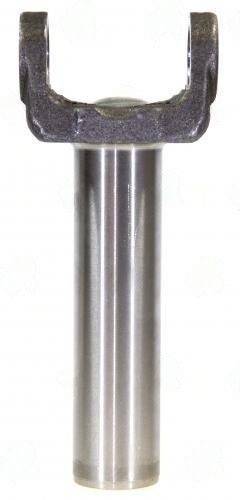

2903-30 7290 series transmission yoke for Chrysler 727 and A518 family, 29/30-spline x 1.312″, 1.455″ counterbore, DET#2781932.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 2903-30 |
| DET Reference | 2781932 |
| Series | 7290 |
| Splines | 29/30 x 1.312" |
| C/U-joint to End | 8.031" |
| Hub Diameter | 1.681" |
| Counterbore Dia | 1.455" |
| Applications | Chrysler 727, A518, 46RH, 46RE, 47RE |
- DET (Dana Engineering Template) number 2781932 is the OEM cross-reference -- use this when sourcing the matching U-joint or checking against dealer parts catalogs
- The 1.455" counterbore pilots against the transmission output bearing retainer -- this is a centering feature and must not be omitted; use 2903-301 (no counterbore) only on applications that do not require piloting
- Fits Chrysler 727, TorqueFlite A518, 46RH, 46RE, and 47RE transmissions -- the same yoke geometry spans the entire Chrysler RH/RE family
- Retain the output shaft nut to transmission specification -- Chrysler specifies a specific torque for the yoke retaining nut; under-torque is a common cause of premature spline wear on this family
When upgrading from a 7260 yoke to this 7290 fitment, check that the driveshaft tube yoke or weld yoke at the differential end is also 7290 rated -- mixing series across a single shaft creates a weak-link failure point.
Additional information
| Center u joint to end | 8.031 |
|---|---|
| Counter bore dia | 1.455 |
| Hub dia | 1.681 |
| Notes | DET#2781932 Chrysler 727/A518/46RH/46RE/47RE trans |
| Partn number | 2903-30 |
| Series | 7290 |
| Splines count dia | 29/30 X 1.312 |
