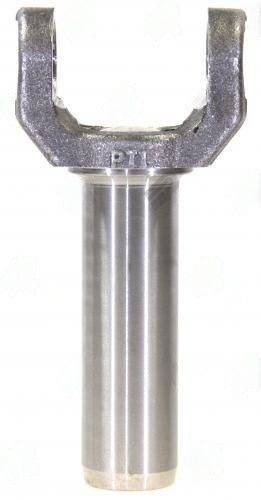

2603-22 – Transmission Yokes – 7260 Series – 20/22 X 0.959 Splines – 1.375″ Hub Dia
$71.49
1 in stock
Description
2603-22 7260 series transmission yoke for Mazda, 20/22-spline x 0.959″ diameter, 1.050″ counterbore, 1.375″ hub diameter.
Full Description
Spec Summary: 2603-22 -- 7260 Series | Mazda | 20/22-Spline x 0.959" Dia | C/U-joint to End 6.000" | Hub 1.375" | Counterbore 1.050"
The 0.959" spline pitch diameter is among the smallest found on any rear-wheel-drive application in this product range -- this yoke is sized for compact Mazda transmissions, and the fine spline pitch requires careful torque application during installation. Over-tightening the retaining nut stretches the spline flanks and can cause the yoke to seize on the output shaft, making future removal very difficult.
The 7260 series U-joint cap dimensions must be verified against the trunnion bore in this yoke before assembly. The 20/22-spline count allows some cross-fitment flexibility, but the hub OD of 1.375" and counterbore of 1.050" are specific to this Mazda application. Substituting a yoke with a different counterbore diameter will result in off-center running and vibration. Always replace the output seal when servicing the transmission yoke to prevent fluid contamination of the driveshaft U-joint.
Additional information
| Center u joint to end | 6.000 |
|---|---|
| Counter bore dia | 1.050 |
| Hub dia | 1.375 |
| Notes | MAZDA |
| Partn number | 2603-22 |
| Series | 7260 |
| Splines count dia | 20/22 X 0.959 |
