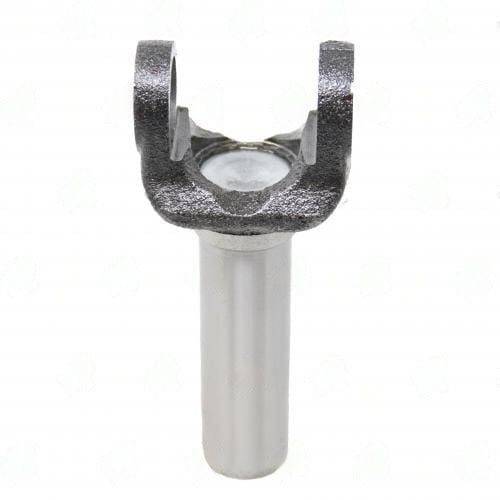

2303-22 – Transmission Yokes – 2351-20 Series – 20/22 X0.985 Splines – 1.258″ Hub Dia
$67.15
1 in stock
Description
2303-22 2351-20 series transmission yoke for Toyota, 20/22-spline x 0.985″ diameter, 5.750″ centerline to U-joint, 1.258″ hub.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 2303-22 |
| Series | 2351-20 |
| Application | Toyota |
| Splines | 20/22 x 0.985" |
| C/U-joint to End | 5.750" |
| Hub Diameter | 1.258" |
| Counterbore | None |
- The 2351-20 series is a metric-origin U-joint specification common on Toyota and other Japanese OEM drivelines -- confirm your existing U-joint series before replacing components to avoid mixing inch-cap and metric-cap parts
- 20/22-spline at 0.985" pitch diameter is Toyota-specific; this is not interchangeable with the Mazda 0.959" profile on 2603-22 despite similar spline counts
- No counterbore -- the 1.258" hub OD provides the centering interface with the transmission seal bore
- Verify hub surface finish before installation -- any corrosion or scoring on the 1.258" sealing surface will cause an immediate oil leak
On Toyota 4WD applications, confirm whether the transfer case or transmission is the slip end of the driveshaft -- the yoke location affects the required C/U-joint to end dimension. A yoke that is too short will bottom out in the transmission under suspension compression.
Additional information
| Center u joint to end | 5.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.258 |
| Notes | TOYOTA |
| Partn number | 2303-22 |
| Series | 2351-20 |
| Splines count dia | 20/22 X0.985 |
