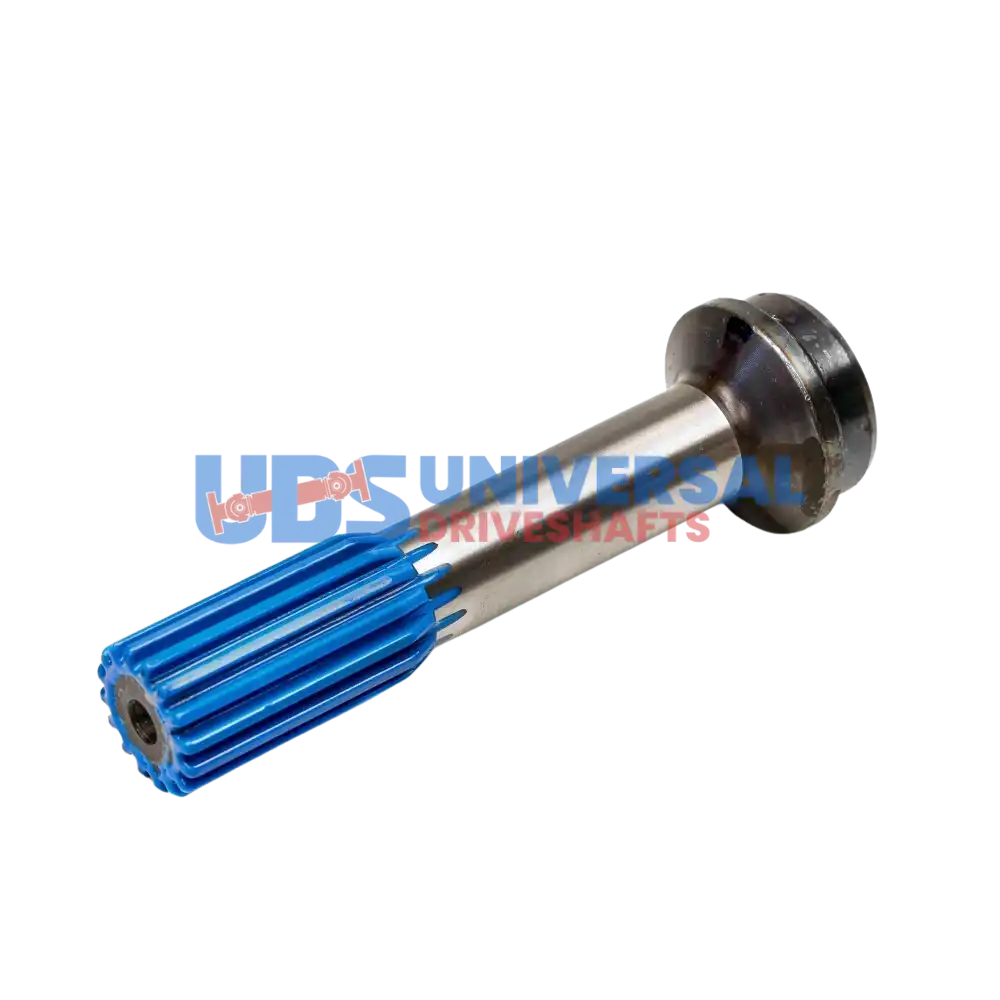

2-40-2381 Spline Stub 1.250 X 16 spline, Fits: 2.000 X .120 , Tube 6.000, Butt 1.766
$23.87
30 in stock
10
People watching this product now!
Description
2-40-2381 slip-style spline stub shaft. Splines: 16×1.250″, tube 2.000″x0.120″, butt dia 1.766″, end-to-weld 6.000″. Verify spline count and tube OD before ordering.
Full Description
2-40-2381 Spline Stub Shaft 16x1.250" Splines 2.000" x 0.120" Tube Slip Style
The 2-40-2381 is a slip-style spline stub shaft with 16 splines at 1.250" diameter. It fits 2.000" OD tube with a 0.120" wall thickness, has a butt diameter of 1.766", an end-to-weld length of 6.000", and a spline length of 2.000".
Specifications
- Part Number: 2-40-2381
- Style: Slip
- Splines Count x Diameter: 16 x 1.250"
- Spline Length: 2.000"
- Tube OD: 2.000"
- Tube Wall: 0.120"
- Butt Diameter: 1.766"
- End to Weld: 6.000"
When fitting the 2-40-2381, confirm the driveshaft tube OD is 2.000" with a 0.120" wall before preparing the weld end. The 1.766" butt diameter is the shoulder against which the tube seats — square-cut and deburr the tube before welding. The 6.000" end-to-weld dimension defines the length from the spline end to the weld point; use this to calculate the overall assembly length contribution.
The slip style on the 2-40-2381 means the splined stub telescopes into a mating slip yoke bore to allow length change under suspension travel. The 16x1.250" spline must match the mating yoke spline count and diameter exactly — a 16-spline stub will not engage correctly in a 10-spline or other-count bore. Verify the mating slip yoke spline specification before ordering the 2-40-2381.
Additional information
| Tube | 2.000×0.120 |
|---|---|
| Spline size | 1.250×16 |
| Partn number | 2-40-2381 |
| End to weld | 6.000 |
| Butt dia | 1.766 |
| Tube wall | 0.120 |
| Tube dia | 2.000 |
| Splines count dia | 16×1.250 |
| Style | Slip |
| Splines length | 2.000 |
