212134-1X Drive Shaft Center Bearing 1.771 X 2.250 X 7.622 SPL100
$57.99
10 in stock
Description
212134-1X center support bearing for SPL100 series driveshaft applications. Bearing ID 1.771″, mount hole center-to-center 7.622″, center-to-base 2.689″, bracket width 2.250″. Heavy commercial truck series — verify stub shaft OD matches 1.771″.
Full Description

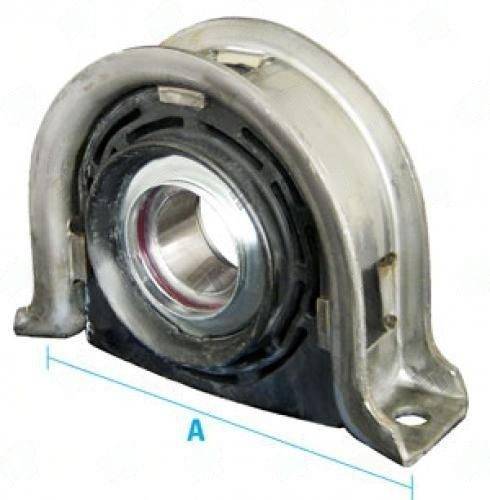

212134-1X -- SPL100 Series Center Support Bearing, 1.771" ID, 7.622" Mount Spacing
The SPL100 is a heavy-duty commercial driveshaft series, rated well above the 1610 and 1710 light-heavy series used in Class 4-5 trucks. The 212134-1X is the center support bearing for two-piece SPL100 driveshafts, carrying the midship stub shaft at the junction between the front and rear sections. Two dimensions control fitment: the bearing inner bore (1.771 inches) and the frame bracket mount hole spacing (7.622 inches center-to-center).
The 7.622-inch C-to-C mount spacing is wider than the 5.875-inch spacing on light-duty Ford center bearings -- this is a commercial-grade assembly designed for the wider crossmembers found on Class 5-8 trucks. Center-to-base dimension: 2.689 inches. Bracket width: 2.250 inches. These determine the bearing's installed height relative to the frame and the lateral clearance required for the carrier.
- Part Number: 212134-1X
- Application: SPL100 series driveshafts
- Bearing ID: 1.771"
- Mount Hole C-to-C: 7.622"
- Center to Base: 2.689"
- Bracket Width: 2.250"
Inspect the rubber isolator for cracking or oil saturation at every service interval -- a degraded isolator on a commercial truck transmits driveshaft NVH directly to the cab at highway speed. Full Center Support Bearing catalog for light and heavy series.
Additional information
| Application | SPL100 |
|---|---|
| Bearing id | 1.771 |
| Center bearing to base | 2.689 |
| Ctr to ctr of mount holes | 7.622 |
| Partn number | 212134-1X |
| Bracket wid | 2.250 |
