2752-1091 – CV Joint Kit – Bolt Hole Count 6″ – Outer Dia 108mm – Splines Dia 28.35mm

The 2752-1091 is a complete CV joint kit for Land Rover driveshaft applications. Unlike conventional U-joint yokes, CV (constant velocity) joints maintain smooth power delivery through higher operating angles by eliminating the velocity variation that U-joints produce at angle. Land Rover vehicles with independent rear suspension use CV joints at the differential end of the driveshaft.

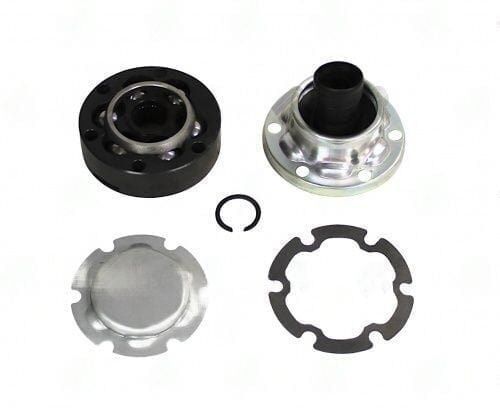

This kit includes the CV joint assembly, boot cap, and gasket. The 34-spline x 28.35mm specification is the Land Rover-specific shaft interface. Inner race width of 26.1mm and outer race width of 28mm define the joint's bearing geometry.

CV joints on Land Rover applications typically fail from torn boots that allow water and debris ingress. Once contaminated, the internal ball-and-race surfaces score rapidly. If the boot is failed but the joint shows no roughness or play under load, replacing the complete joint assembly proactively avoids a second disassembly.
