TY 3597-1 Weld Yoke 35×96.8 Fits 2.76 x 0.120 Tube, 1106069 UDS
$41.14
25 in stock
Description

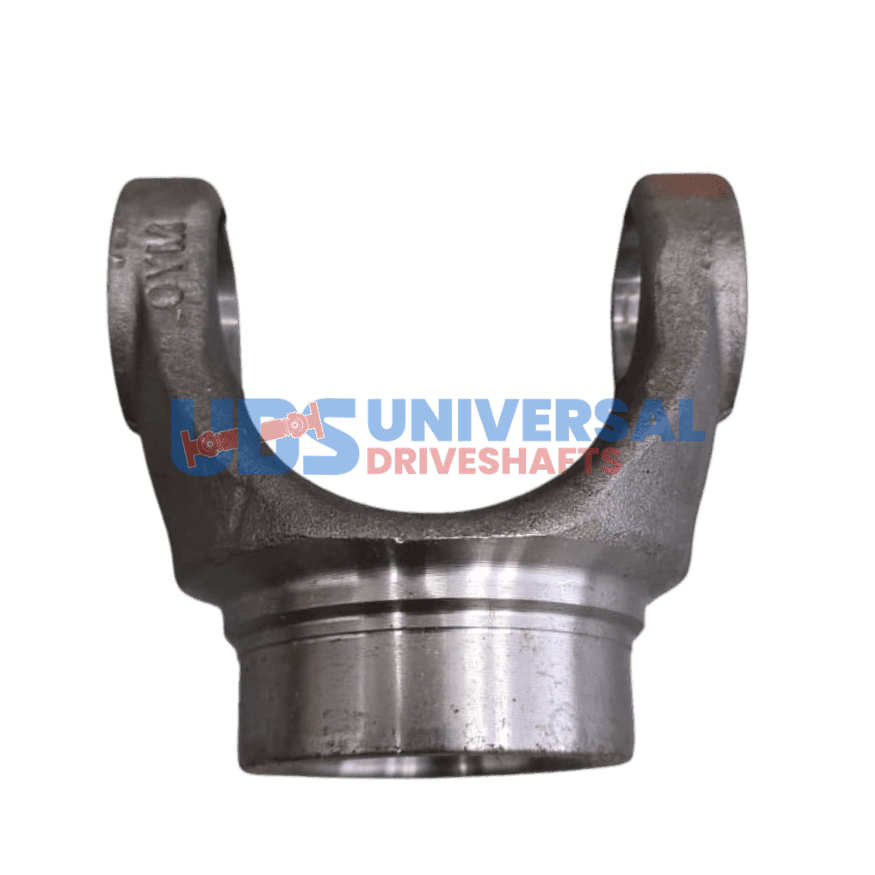

The TY3597-1U is a 35×96.8 series weld tube yoke for 2.76×0.120in OD driveshaft tube with a 1.630″ butt diameter. Steel construction, ready for custom driveshaft fabrication at Universal Driveshafts.
Full Description
Replacement Weld Tube Yoke TY3597-1U -- Precision-Matched for 35x96.8 Series Builds
Weld tube yokes are the u-joint-end connection for custom driveshaft tubes. The TY3597-1U is a 35x96.8 series weld yoke for 2.76x0.120-inch OD tube with listed-inch wall, with a butt diameter of 1.630 inch and a CJ-to-weld distance of 2.560 inch. Whether this is a straightforward OEM replacement or a component in a custom driveshaft assembly, the TY3597-1U provides a dimensionally verified starting point rather than a catalog guess.
Specification Detail
| Specification | Value |
|---|---|
| Series | 35x96.8 |
| Tube OD x Wall | 2.76x0.120 |
| Butt Dia | 1.630 |
| CJ to Weld | 2.560 |
| Material | STEEL |
| Brand | UDS |
| Part Number | TY3597-1U |
Sourcing a Weld Tube Yoke: What to Cross-Reference
When replacing a weld tube yoke, the safest approach is to cross-reference the part number stamped on the original. If that number has been superseded or the original part is missing, the critical dimensions are tube OD 2.76x0.120 x wall listed, butt dia 1.630. Match these to the values in the specification table above. All other details -- material grade, surface finish, cap bore size -- are built into the 35x96.8 series designation and will be correct if the key dimensions match.
Assembly Reminders
- Never use a hammer directly on the yoke body -- use a brass drift or press for cap installation
- Snap ring grooves must be clean and undamaged for the circlip to seat at full depth
- Confirm 35x96.8 series cap OD before pressing -- an undersized cap will not carry load correctly
- Check transmission output shaft seal condition -- a failing seal will contaminate the new yoke quickly
- Verify tube OD 2.76x0.120 x wall listed, butt dia 1.630 with calipers after assembly, before road test
Note: Weld Yoke 35x96.8 u joint
Universal Driveshafts stocks the TY3597-1U for immediate shipment. Packaging protects finished surfaces during transit.
Additional information
| Series | 35×96.8 |
|---|---|
| Tube dia wall | 2.76×0.120 |
| Butt dia | 1.630 |
| Center u j to weld | 2.560 |
| Material | STEEL |
| Partn number | TY3597-1 |
| Notes | Weld Yoke 35×96.8 u joint |
| Brand | UDS |
