TY3082-395 , Weld Tube Yoke 30.2×82 , Fits: 3.000×0.095 Tube ,Butt 2.820″ , 1106028

Technical Overview: Weld Tube Yoke TY3082-395U for GUA Series Applications

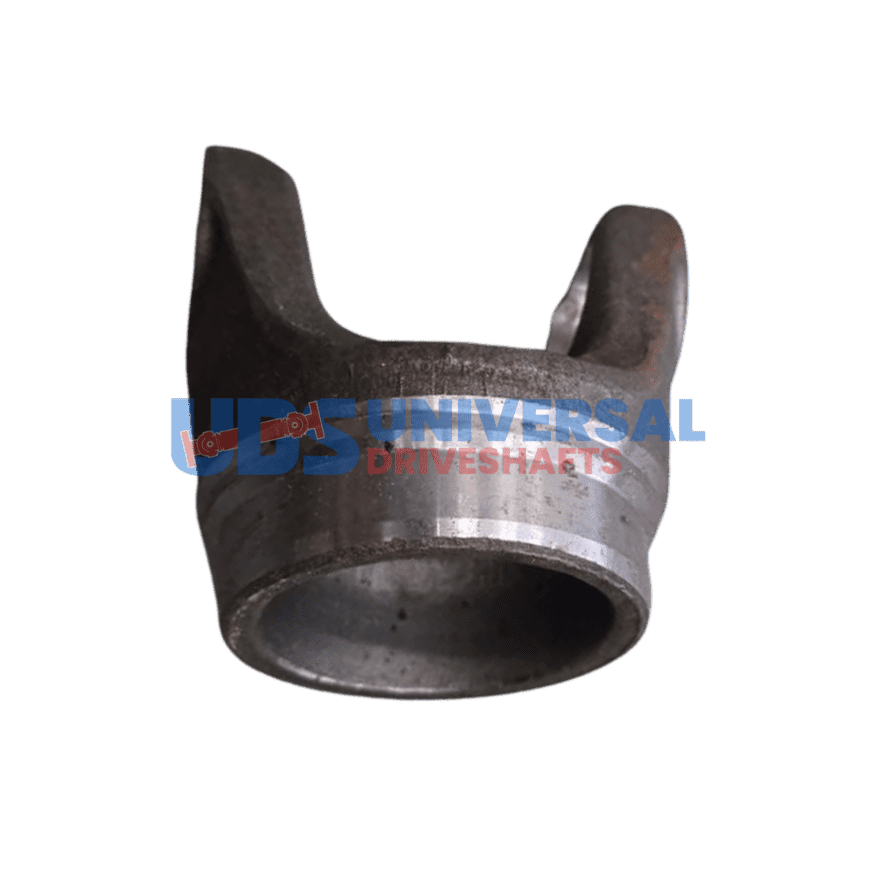

Weld tube yokes are the u-joint-end connection for custom driveshaft tubes. The TY3082-395U is a GUA series weld yoke for 3.000-inch OD tube with 0.095-inch wall, with a butt diameter of 2.820 inch and a CJ-to-weld distance of 2.162 inch. This is a direct-application part -- dimensioned for a specific combination of series rating and key dimension, with no need for secondary machining in standard installations.

Part Dimensions

Why Series Matching Is Non-Negotiable

Series GUA sets the cross cap diameter, load rating, and operating angle specification for every component in that driveshaft section. Substituting a weld tube yoke from a different series introduces dimensional mismatches at the u-joint ears that prevent proper cap seating -- leading to rapid wear, seal failure, and potential separation. The TY3082-395U was designed for GUA series, so the geometry matches exactly.

Before You Install

• Confirm tube OD 3.000 x wall 0.095, butt dia 2.820 is correct for your vehicle
• Check output shaft or spline for wear, scoring, or fretting before reinstalling
• Pack u-joint cross caps with chassis grease if your application has a grease fitting
• Torque retaining hardware to spec -- over-tightening snap ring grooves causes yoke cracking
• Rotate by hand before vehicle movement to check for binding or clunking

The TY3082-395U is a catalog item at Universal Driveshafts -- available for fast dispatch. Contact our technical team if you need help confirming fitment.
