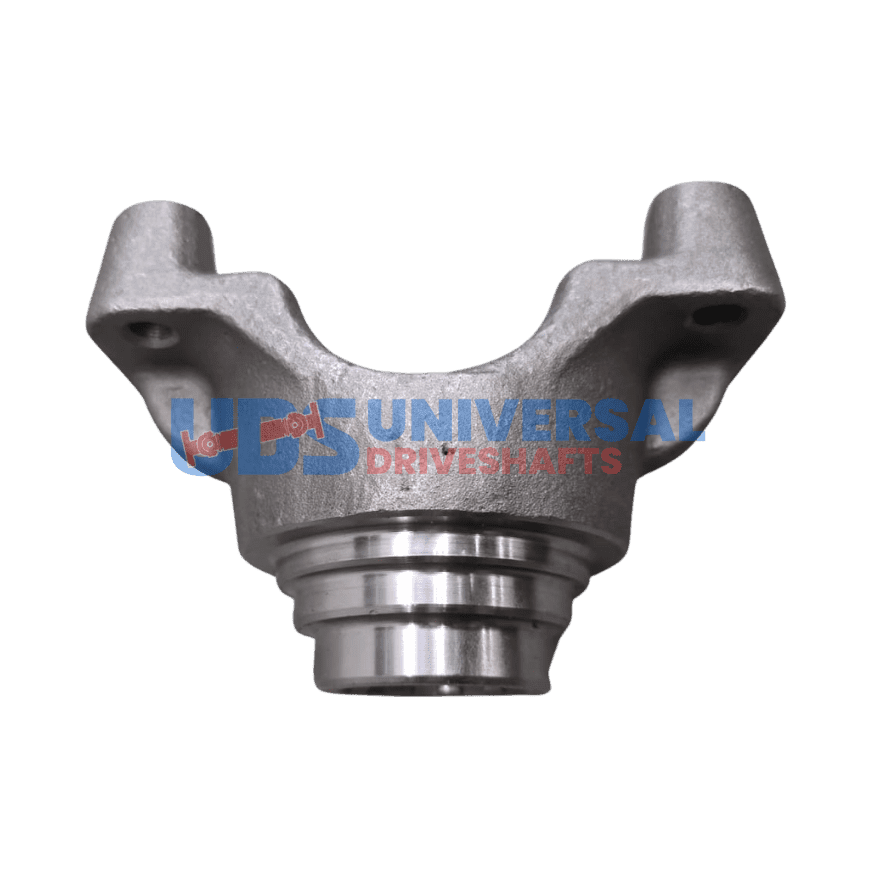

4-4-7901-2 End Yoke, 1550 Series – Splines; 10×1.5 – UDS
$75.64
25 in stock
Description
The 4-4-7901-2U is a 1550 series end yoke with 10 splines at 1.500 diameter, designed for transmission or transfer case output shaft applications. Ready to install — in stock at Universal Driveshafts.
Full Description
4-4-7901-2U: 1550 Series End Yoke -- Drivetrain Component Guide
The drivetrain has no redundant load paths -- every torque-carrying component must perform correctly or the system fails. The 4-4-7901-2U is the end yoke position in that load chain for 1550 series applications, providing spline diameter of 1.500 with 10 splines with forged construction and production-controlled tolerances.
Specification Data
| Specification | Value |
|---|---|
| Series | 1550 |
| Splines Count | 10 |
| Splines Dia | 1.500 |
| Hub Dia | 1.940" |
| CJ to End | 3.818 |
| Through Hole | 2.000 |
| Style | BS |
| Material | Steel |
| Brand | UDS |
| Part Number | 4-4-7901-2U |
Failure Modes and Prevention
A worn end yoke typically presents as vibration at certain speed ranges, a clunk on throttle engagement, or visible play when you grab the driveshaft near the yoke and rock it. Left unaddressed, it accelerates u-joint wear, can score the output shaft seal contact area, and in severe cases causes shaft separation. Replacing the 4-4-7901-2U as part of a scheduled drivetrain refresh -- rather than waiting for failure -- is the lower-cost strategy in the long run.
Fitment Checklist
- Spline diameter of 1.500 with 10 splines -- verified against this part before ordering
- Series 1550 u-joint cross in service or on order for this shaft end
- Mating component (output shaft / companion flange) in serviceable condition
- Retaining hardware (snap rings, strap bolts, or flange bolts as applicable) renewed if previously heat-cycled
- Shaft balance acceptable after installation -- road test confirms this
Note: Use 4-53-361 For midship Splines
Order the 4-4-7901-2U from Universal Driveshafts today. In-stock items ship fast from our warehouse.
New to end yokes? Our end yoke guide explains splines, snap-ring styles, and how to measure.
Additional information
| Series | 1550 |
|---|---|
| Hub dia | 1.940″ |
| Splines count | 10 |
| Through hole | 2.000 |
| Style | BS |
| Partn number | 4-4-7901-2 |
| Brand | UDS |
| Notes | Use 4-53-361 For midship Splines |
| Cj to end | 3.818 |
| Splines dia | 1.500 |
