3-26-447 High Angle Weld Yoke, 1410 Series – Fits to Tube 2.285 x 0.160 – UDS

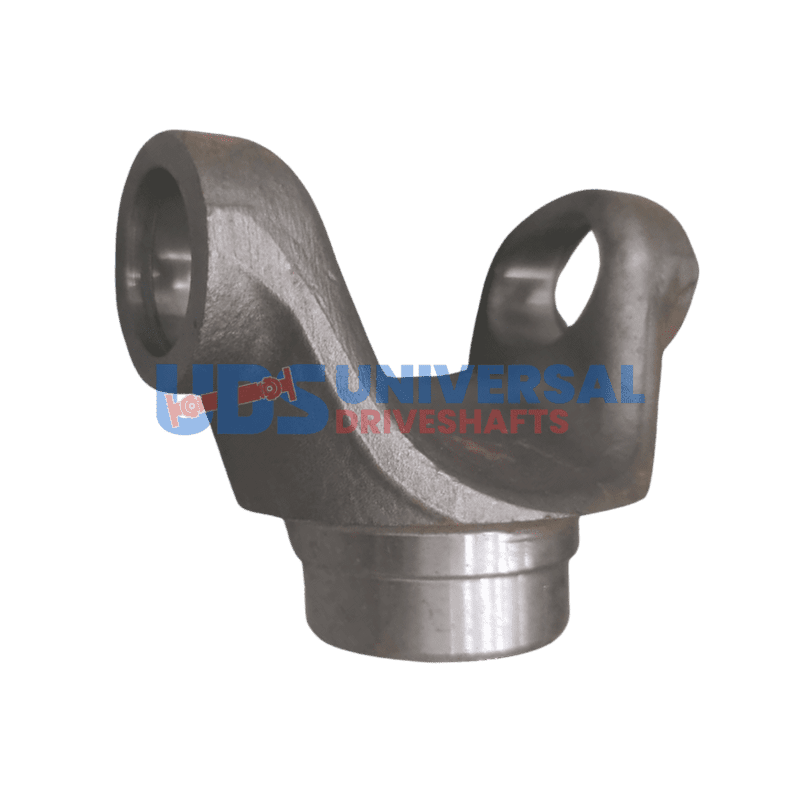

3-26-447U UDS 1410 Series High Angle Weld Yoke

The 3-26-447U is a 1410 series high angle weld yoke manufactured by UDS, machined from steel. It is designed for a driveshaft tube OD of 2.285 inches with a wall thickness of 0.160 inches. The butt diameter is 2.133 inches and the centerline of the U-joint to the weld end measures 2.125 inches. The high angle designation indicates this yoke is configured to accommodate elevated operating angles compared to a standard 1410 weld yoke.

Specifications

• Part Number: 3-26-447U
• Brand: UDS
• Series: 1410
• Tube OD x Wall: 2.285" x 0.160"
• Butt Diameter: 2.133"
• Center U-Joint to Weld: 2.125"
• Material: Steel
• Notes: High angle weld yoke 1410

When fitting the 3-26-447U, verify the tube OD is 2.285 inches and the wall is 0.160 inches before welding. The 2.133-inch butt diameter is matched to this tube spec. High angle yokes use a modified ear geometry that allows greater U-joint articulation, which is necessary on lifted or modified suspension applications where standard operating angles are exceeded. The 1410 series carries greater torque capacity than the 1350 and is common in heavy half-ton and three-quarter-ton truck drivelines. Confirm all mating U-joints in the assembly are also rated for 1410 series cap dimensions when using the 3-26-447U.
