3-28-537 Weld Yoke, 1480 Series – Fits to Tube 3.500×0.083 – UDS

3-28-537U UDS 1310 Series Weld Yoke

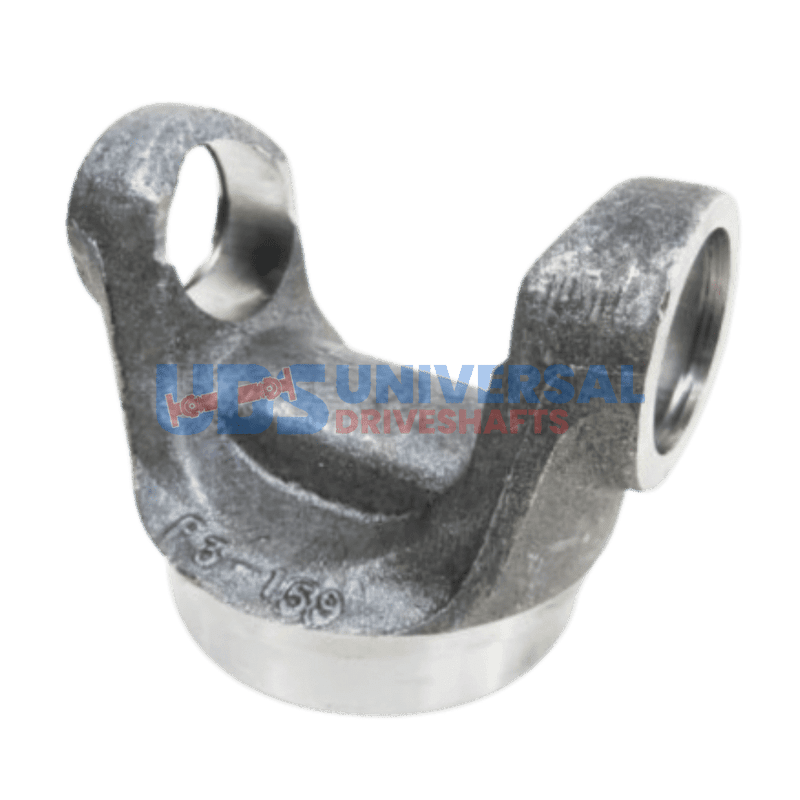

The 3-28-537U is a 1310 series weld yoke manufactured by UDS, machined from steel. It fits a driveshaft tube OD of 3.500 inches with a wall thickness of 0.083 inches. The butt diameter measures 3.344 inches and the centerline of the U-joint to the weld end is 2.031 inches.

Specifications

• Part Number: 3-28-537U
• Brand: UDS
• Series: 1310
• Tube OD x Wall: 3.500" x 0.083"
• Butt Diameter: 3.344"
• Center U-Joint to Weld: 2.031"
• Material: Steel

When fitting the 3-28-537U, confirm the tube OD is 3.500 inches and wall is 0.083 inches before welding. The 3.344-inch butt diameter is matched to this tube specification. Note that this is a large-diameter tube application for a 1310 series yoke — the tube wall is thin at 0.083 inches, so proper weld prep and technique are critical to avoid distortion. The 3-28-537U pairs a 1310 series U-joint interface with a large-tube weld connection, a configuration seen in light-duty vehicles with larger-diameter, thin-wall aluminum or steel tubes. Verify the mating U-joint is 1310 series and that the tube material is rated for the intended application before assembly.
