2-28-577-S Weld Yoke, 1310 Series, for 2.000 x .095 Tube – UDS

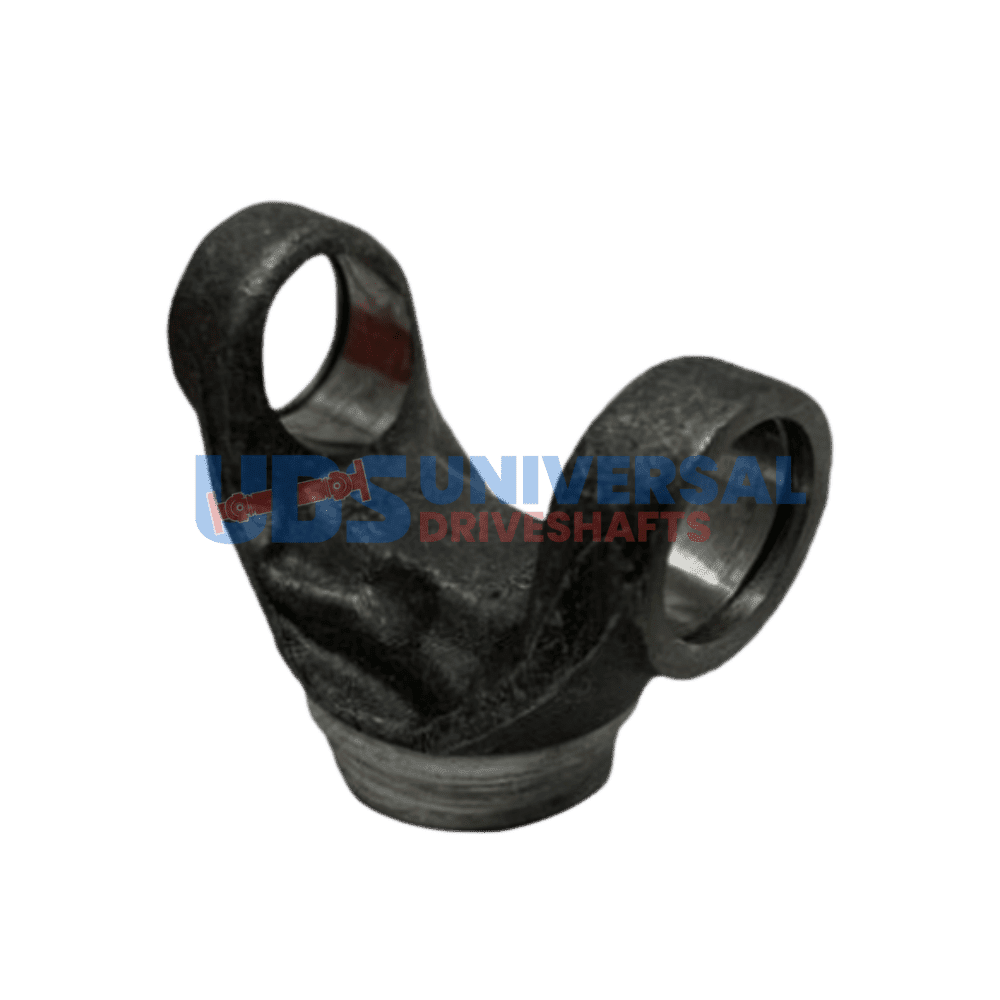

2-28-577-SU UDS 1310 Series Weld Yoke — Solid Butt

The 2-28-577-SU is a 1310 series weld yoke manufactured by UDS with a solid butt construction, machined from steel. It fits a tube OD of 2.000 inches with a wall thickness of 0.095 inches. The butt diameter measures 1.821 inches and the centerline of the U-joint to the weld end is 1.688 inches.

Specifications

• Part Number: 2-28-577-SU
• Brand: UDS
• Series: 1310
• Tube OD x Wall: 2.000" x 0.095"
• Butt Diameter: 1.821"
• Center U-Joint to Weld: 1.688"
• Material: Steel
• Notes: Solid Butt

When fitting the 2-28-577-SU, confirm the tube OD is 2.000 inches and the wall is 0.095 inches before welding. The solid butt geometry means the butt end is fully machined without a bore, providing a full material cross-section at the weld interface. This configuration is preferred in applications where maximum weld strength at the butt joint is required. The 2-28-577-SU uses the 1310 series U-joint interface, appropriate for light- to medium-duty driveline applications. The 1.688-inch CL-to-weld dimension makes this a compact weld yoke, suited for short driveshaft configurations where tube length is limited.
