Brand:

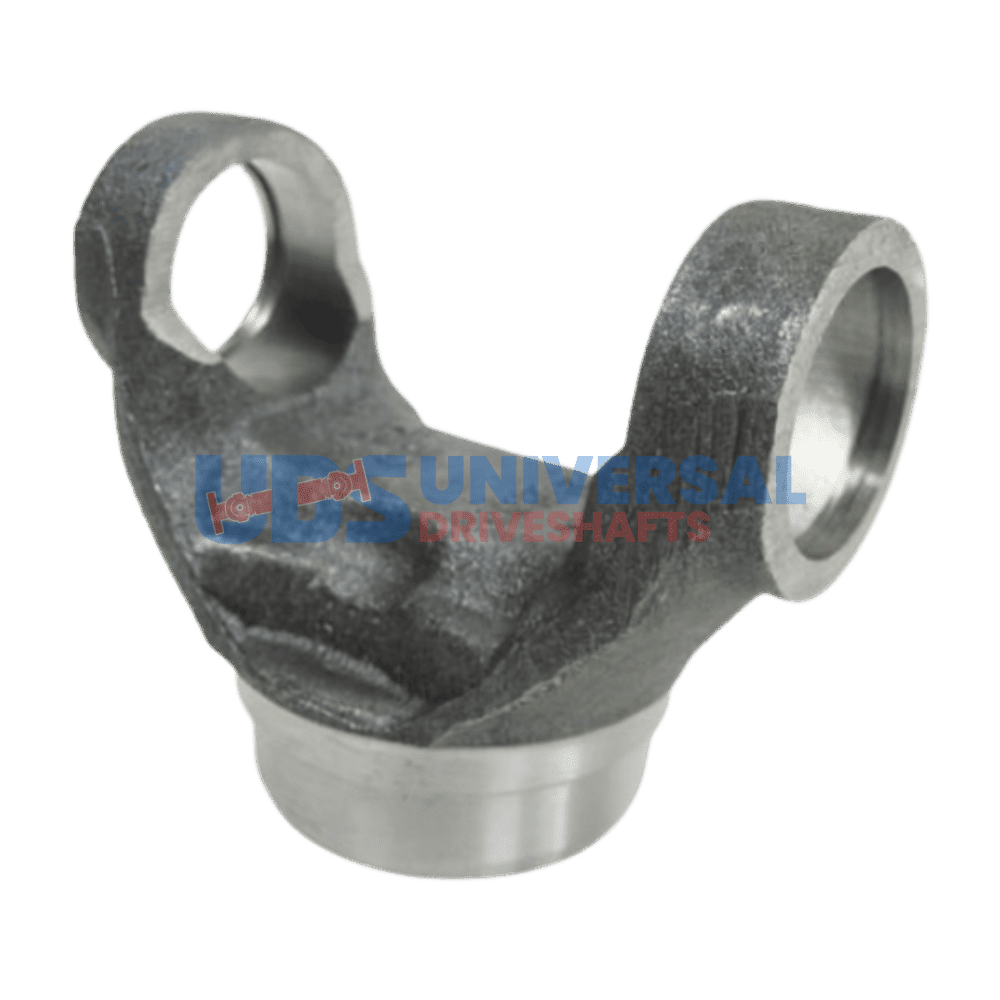

UDS 2-28-417 Weld Tube Yoke 1310 Series , Fits: 2.000 x 0.065 , 1.688 CL to Weld
$14.42
+50 in stock
Description
The 2-28-417U is a 1310 series weld tube yoke for 2.000×0.065in OD driveshaft tube with a 1.881″ butt diameter. Steel construction, ready for custom driveshaft fabrication at Universal Driveshafts.
Full Description
Replacement Weld Tube Yoke 2-28-417U -- Precision-Matched for 1310 Series Builds
Weld tube yokes are the u-joint-end connection for custom driveshaft tubes. The 2-28-417U is a 1310 series weld yoke for 2.000x0.065-inch OD tube with listed-inch wall, with a butt diameter of 1.881 inch and a CJ-to-weld distance of 1.688 inch. Whether this is a straightforward OEM replacement or a component in a custom driveshaft assembly, the 2-28-417U provides a dimensionally verified starting point rather than a catalog guess.
Specification Detail
| Specification | Value |
|---|---|
| Series | 1310 |
| Tube OD x Wall | 2.000x0.065 |
| Butt Dia | 1.881 |
| CJ to Weld | 1.688 |
| Material | STEEL |
| Brand | UDS |
| Part Number | 2-28-417U |
Sourcing a Weld Tube Yoke: What to Cross-Reference
When replacing a weld tube yoke, the safest approach is to cross-reference the part number stamped on the original. If that number has been superseded or the original part is missing, the critical dimensions are tube OD 2.000x0.065 x wall listed, butt dia 1.881. Match these to the values in the specification table above. All other details -- material grade, surface finish, cap bore size -- are built into the 1310 series designation and will be correct if the key dimensions match.
Assembly Reminders
- Never use a hammer directly on the yoke body -- use a brass drift or press for cap installation
- Snap ring grooves must be clean and undamaged for the circlip to seat at full depth
- Confirm 1310 series cap OD before pressing -- an undersized cap will not carry load correctly
- Check transmission output shaft seal condition -- a failing seal will contaminate the new yoke quickly
- Verify tube OD 2.000x0.065 x wall listed, butt dia 1.881 with calipers after assembly, before road test
Universal Driveshafts stocks the 2-28-417U for immediate shipment. Packaging protects finished surfaces during transit.
Additional information
| Butt dia | 1.881 |
|---|---|
| Center u j to weld | 1.688 |
| Material | STEEL |
| Partn number | 2-28-417 |
| Series | 1310 |
| Tube dia wall | 2.000×0.065 |
| Brand | UDS |
