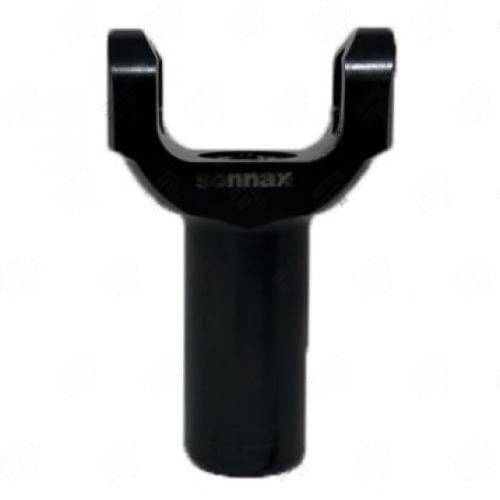

T3-3-2431CBHP – Transmission Yokes – 1350 Series – 32 X 1.378 Splines – 1.866″ Hub Dia
$212.65
1 in stock
Description
T3-3-2431CBHP forged chromoly black oxide 1350 TH400 yoke, 32-spline x 1.378″ diameter, 5.500″ C/U-joint to end, 0.625″ counterbore.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | T3-3-2431CBHP |
| Series | 1350 |
| Application | Short TH400 |
| Material | Forged Chromoly, Black Oxide |
| Splines | 32 x 1.378" |
| C/U-joint to End | 5.500" |
| Hub Diameter | 1.866" |
| Counterbore | 0.625" |
- The "CB" suffix indicates counterbore -- the 0.625" pilot seats against the TH400 output bearing retainer and eliminates lateral yoke float at the output end
- Hub diameter 1.866" on this yoke versus 1.886" on T3-3-2431HP (no counterbore) -- a 0.020" difference; confirm which hub OD matches your TH400 output seal before ordering
- 32-spline (single count, not dual 31/32) -- use only on confirmed 32-spline TH400 output shafts
- Same 5.500" length as T3-3-2431HP -- short-wheelbase drag car application
- Forged chromoly and black oxide -- same construction as the rest of the HP family
The counterbore on T3-3-2431CBHP is the primary selection criterion over the no-counterbore version. In high-RPM TH400 drag applications, the counterbore pilot reduces the tendency of the yoke to precess on the output shaft under heavy torsional loading, which is a failure mode that occurs progressively and can be mistaken for output bearing wear.
Additional information
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | 625 |
| Hub dia | 1.866 |
| Notes | Short TH400 / Forged Chromoly / Black Oxidized |
| Partn number | T3-3-2431CBHP |
| Series | 1350 |
| Splines count dia | 32 X 1.378 |
