S4-3-1241KX – Slip Yoke – 1550 Series – 1.750″ Splines Dia – Center U Joint To End 6.875
$213.09
+50 in stock
12
People watching this product now!
Description
S4-3-1241KX UDS 1550 series slip yoke. Splines: 16, CJ-to-end: 6.875″. Verify stop shaft spline count and diameter before ordering.
Full Description

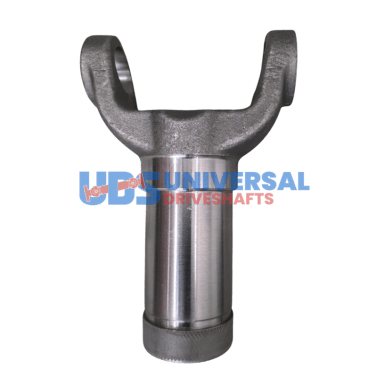

S4-3-1241KX UDS 1550 Slip Yoke
The S4-3-1241KX is a 1550 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline specification is 16; verify this matches the stop shaft before ordering. The centerline-to-end dimension is 6.875 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. Spicer. The 1550 series ranks above 1480 in torque capacity, with a 1.375-inch cap diameter, suited for medium-duty commercial vehicles.
Specifications
- Part Number: S4-3-1241KX
- Brand: UDS
- Series: 1550
- Center u joint to end: 6.875
- Notes: Spicer
- Splines count: 16
- Splines dia: 1.750"
Fitment & Installation Notes
When selecting the S4-3-1241KX, verify the stop shaft spline count and diameter match the 16 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Slip Yoke in 1550 and adjacent series configurations.
Additional information
| Center u joint to end | 6.875 |
|---|---|
| Notes | Spicer |
| Partn number | S4-3-1241KX |
| Series | 1550 |
| Splines count | 16 |
| Splines dia | 1.750″ |
