IC26 – Increase Bushing – Length 0.75″ – From Tube 2-120 – Inside Dia 1.764″ – Outer Dia 2.56″

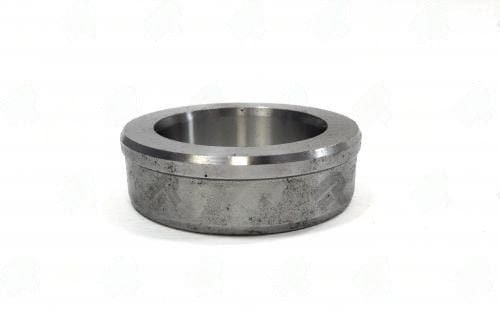

IC26 Increase Bushing 2-120 to Toyota 2.56 OD Tube

The IC26 is a driveshaft increase bushing transitioning from a 2-120 tube (2.0" OD x 0.120" wall) to Toyota OE tubing with a 2.56" OD. Inside diameter is 1.764", outer diameter is 2.56", and length is 0.75". The weld lip when installed is 0.125". This bushing is specific to the Toyota 2.56" OD driveshaft tube family.

Specifications

• Part Number: IC26
• From Tube: 2-120
• To Tube: 256-060 (Toyota OE 2.56" OD)
• Inside Diameter: 1.764"
• Outer Diameter: 2.56"
• Length: 0.75"
• Notes: Weld Lip = 0.125"; 2-120 to Toyota OE tubing 2.56 OD

When fitting the IC26, confirm the inner tube is 2.0" OD x 0.120" wall (2-120) and the outer tube is Toyota OE spec with a 2.56" OD (256-060). The 1.764" ID is the same as the IC35 (which also uses 2-120 inner tube) -- the difference is in the outer tube dimension. The IC26 targets Toyota non-standard 2.56" OD tubing rather than the standard 3.0" OD used in the IC35.

The IC26 is a specialized bushing for Toyota driveshaft rebuilds where an OEM-diameter 2.56" tube is being retained or matched. The 0.125" weld lip is shallower than the 0.25" found on other increase bushings in this series. Confirm the Toyota tube OD is 2.56" from direct measurement before ordering.

The IC26 ID of 1.764" and OD of 2.56" are the critical matching dimensions. Both tube specs (2-120 inner and 256-060 Toyota outer) must be verified before ordering. This bushing is not applicable to standard 3.0" or 2.5" OD tube applications.
