5369 – Increase Bushing – Length 875″ – From Tube 25-083 – Inside Dia 2.328″ – Outer Dia 3.5″

5369 Increase Bushing 25-083 to 35-083

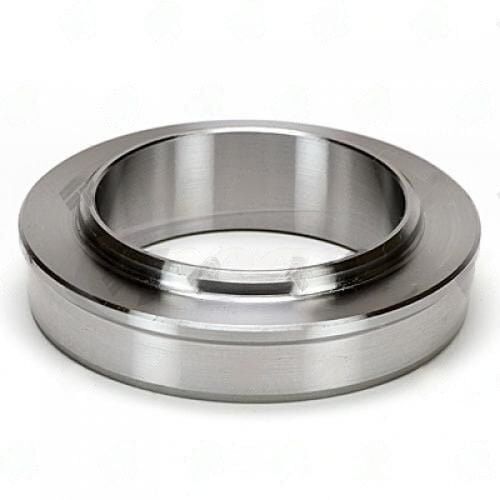

The 5369 is a driveshaft increase bushing transitioning from a 25-083 tube (2.5" OD x 0.083" wall) to a 35-083 tube (3.5" OD x 0.083" wall). Inside diameter is 2.328", outer diameter is 3.5", and length is 0.875".

Specifications

• Part Number: 5369
• From Tube: 25-083
• To Tube: 35-083
• Inside Diameter: 2.328"
• Outer Diameter: 3.5"
• Length: 0.875"

When fitting the 5369, confirm the inner tube is 2.5" OD x 0.083" wall (25-083) and the target outer tube is 3.5" OD x 0.083" wall (35-083). The 2.328" ID reflects the 25-083 bore dimension. Both tubes use the same 0.083" wall specification. Verify the inner tube wall is 0.083" -- a heavier wall (0.095") will reduce the bore and prevent seating.

The 5369 covers the same tube transition as using an IC38 (25-083 to 3-083) followed by an IC30 (3-083 to 35-083), but does it in one bushing. Confirm this single-step approach is the correct design for the specific driveshaft build.

The 5369 ID of 2.328" and OD of 3.5" are the critical matching dimensions. Note the 2.328" ID differs slightly from the 2.334" used in IC38 and IC29 -- verify against the specific tube wall. Confirm both tube specs (25-083 inner and 35-083 outer) before ordering.
