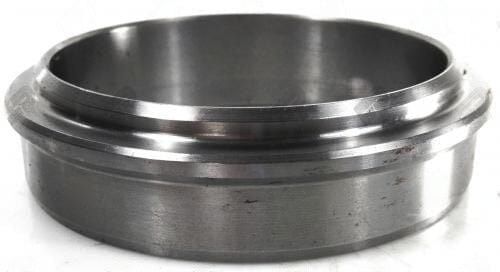

5368 – Increase Bushing – Length 875″ – From Tube 3-083 – Inside Dia 2.838″ – Outer Dia 3.5″

5368 Increase Bushing 3-083 to 35-083

The 5368 is a driveshaft increase bushing transitioning from a 3-083 tube (3.0" OD x 0.083" wall) to a 35-083 tube (3.5" OD x 0.083" wall). Inside diameter is 2.838", outer diameter is 3.5", and length is 0.875".

Specifications

• Part Number: 5368
• From Tube: 3-083
• To Tube: 35-083
• Inside Diameter: 2.838"
• Outer Diameter: 3.5"
• Length: 0.875"

When fitting the 5368, confirm the inner tube is 3.0" OD x 0.083" wall (3-083) and the target outer tube is 3.5" OD x 0.083" wall (35-083). The 2.838" ID accommodates the 3-083 bore. Both tubes in this transition use the same 0.083" wall specification. Confirm the inner tube end is cut square and deburred before insertion.

The 5368 covers the same tube transition as the IC30 (3-083 to 35-083, same OD specs). The key difference is the length: 5368 is 0.875" while IC30 does not list a length but notes a 0.25" installed lip. Verify which length and lip characteristic is required for the specific application weld geometry.

The 5368 ID of 2.838" and OD of 3.5" are the critical matching dimensions. Verify both tube specifications (3-083 inner and 35-083 outer) before ordering. A heavier wall on either tube will prevent the bushing from seating at the correct depth.
