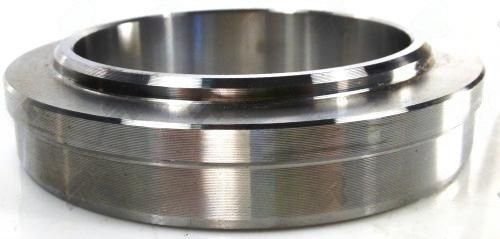

5366 – Increase Bushing – Length 1″ – From Tube 35-156 – Inside Dia 3.188″ – Outer Dia 4.5″

5366 Increase Bushing 35-156 to 45-083

The 5366 is a driveshaft increase bushing transitioning from a 35-156 tube (3.5" OD x 0.156" wall) to a 45-083 tube (4.5" OD x 0.083" wall). Inside diameter is 3.188", outer diameter is 4.5", and length is 1.0".

Specifications

• Part Number: 5366
• From Tube: 35-156
• To Tube: 45-083
• Inside Diameter: 3.188"
• Outer Diameter: 4.5"
• Length: 1.0"

When fitting the 5366, confirm the inner tube is 3.5" OD x 0.156" wall (35-156) and the target outer tube is 4.5" OD x 0.083" wall (45-083). The 3.188" ID reflects the heavy-wall 35-156 bore dimension. Verify the inner tube wall is exactly 0.156" before insertion.

The 5366 represents a large step-up in diameter (3.5" to 4.5") with a significant wall thickness difference between inner (0.156") and outer (0.083") tubes. Weld preparation must account for the dissimilar wall thicknesses at the outer tube weld joint. The 1.0" length provides adequate weld land for both tube interfaces.

The 5366 ID of 3.188" and OD of 4.5" are the critical matching dimensions. Both tube specifications (35-156 inner and 45-083 outer) must be verified before ordering. The wall thickness mismatch makes this bushing non-interchangeable with other 3.5"-to-4.5" transitions using different wall combinations.
