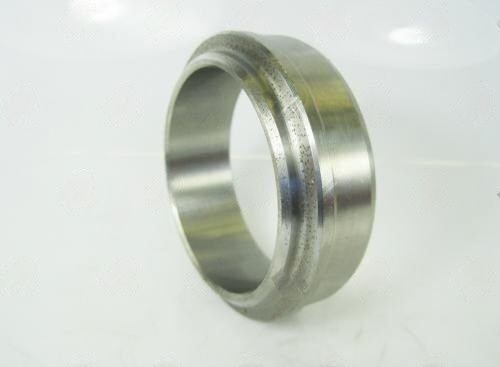

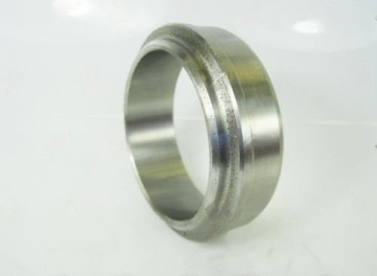

5361 – Increase Bushings – Inside Dia 2.281″ – Outer Dia 3″ – Length 875

The 5361 increase bushing at 2.281-inch ID and 3.0-inch OD provides 0.359 inch of wall per side -- enough to be a structural increase bushing capable of carrying press-fit load through the yoke bore. The 0.875-inch length provides adequate engagement depth for a solid press fit without excessive overhang into the tube bore.

SKU

5361

Inside diameter

2.281"

Outside diameter

3.0"

Length

0.875"

The 2.281-inch inner bore corresponds to an approximately 57.9mm tube OD -- common in certain European and Asian commercial vehicle applications. When building or adapting a driveshaft for an import application with this tube size to a standard 3.0-inch bore yoke, the 5361 is the correct bushing without additional shimming.
