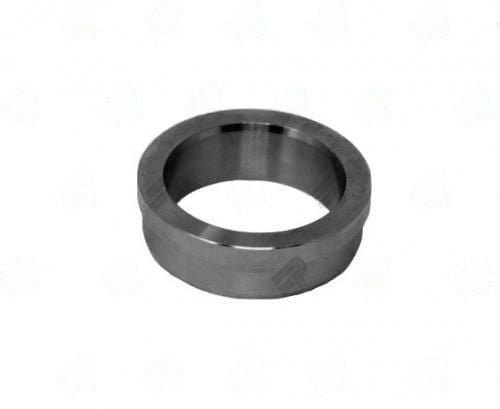

IC25 – Increase Bushing – Length 0.75″ – From Tube 2-065 – Inside Dia 1.87″ – Outer Dia 2.5″

IC25 Increase Bushing 2-065 to 25-065

The IC25 is a driveshaft increase bushing transitioning from a 2-065 tube (2.0" OD x 0.065" wall) to a 25-065 tube (2.5" OD x 0.065" wall). Inside diameter is 1.87", outer diameter is 2.5", and length is 0.75". The weld lip when installed is 0.125".

Specifications

• Part Number: IC25
• From Tube: 2-065
• To Tube: 25-065
• Inside Diameter: 1.87"
• Outer Diameter: 2.5"
• Length: 0.75"
• Notes: Weld Lip = 0.125"

When fitting the IC25, confirm the inner tube is 2.0" OD x 0.065" wall (2-065) and the outer tube is 2.5" OD x 0.065" wall (25-065). This is a same-wall (0.065") transition. The 1.87" ID accommodates the 2-065 bore; the 2.5" OD provides the weld interface for the 25-065 outer tube. The weld lip of 0.125" is shallower than the 0.25" found on heavier-section bushings -- account for this in the assembly length calculation.

The IC25 shares the same ID (1.87") and OD (2.5") as the IC28 (2-065 to 25-083), but differs in the target outer tube wall spec. IC25 targets the lighter 0.065" wall outer tube; IC28 targets the heavier 0.083" wall. For the weld joint to seat properly, the outer tube wall specification must match the intended bushing design.

The IC25 ID of 1.87" and OD of 2.5" are the critical matching dimensions. Verify both tube specifications (2-065 inner and 25-065 outer) before ordering. The 0.125" weld lip and 0.75" length must be factored into the driveshaft assembly geometry.
