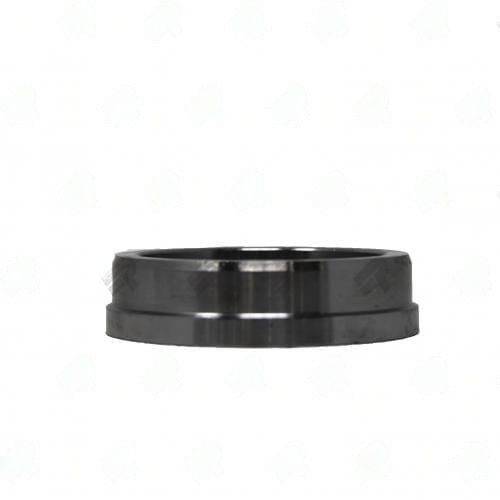

IC27 – Increase Bushing – Length 0.75″ – From Tube 25-065 – Inside Dia 2.371″ – Outer Dia 3″

IC27 Increase Bushing 25-065 to 3-065

The IC27 is a driveshaft increase bushing transitioning from a 25-065 tube (2.5" OD x 0.065" wall) to a 3-065 tube (3.0" OD x 0.065" wall). Inside diameter is 2.371", outer diameter is 3.0", and length is 0.75". When installed, the part produces a 0.25" lip overlap.

Specifications

• Part Number: IC27
• From Tube: 25-065
• To Tube: 3-065
• Inside Diameter: 2.371"
• Outer Diameter: 3.0"
• Length: 0.75"
• Notes: Part LOP installed 0.25"

When fitting the IC27, confirm the inner tube is 2.5" OD x 0.065" wall (25-065) and the target outer tube is 3.0" OD x 0.065" wall (3-065). The 2.371" ID reflects the 25-065 bore dimension. Both tubes in this transition use the same 0.065" wall specification. The 0.25" installed lip is normal and must be accounted for in the driveshaft assembly length.

The IC27 is a same-wall transition from 2.5" to 3.0" tube, both at 0.065" wall. The IC29 (25-083 to 3-065) differs in the inner tube wall; the IC27 uses a lighter inner tube. Do not substitute between these even though the outer tube spec is the same (3-065) -- the ID difference (2.371" vs 2.334") is significant for proper inner tube seating.

The IC27 ID of 2.371" and OD of 3.0" are the critical fitment dimensions. Confirm both tube specs (25-065 and 3-065) before ordering. The 0.75" length and 0.25" installed lip must be factored into the assembly geometry.
