5526-506A Aluminum Weld Yoke 1550 , Fits : 5.000×0.125 Butt Dia: 4.757, Centerline To Weld: 2.750Inch

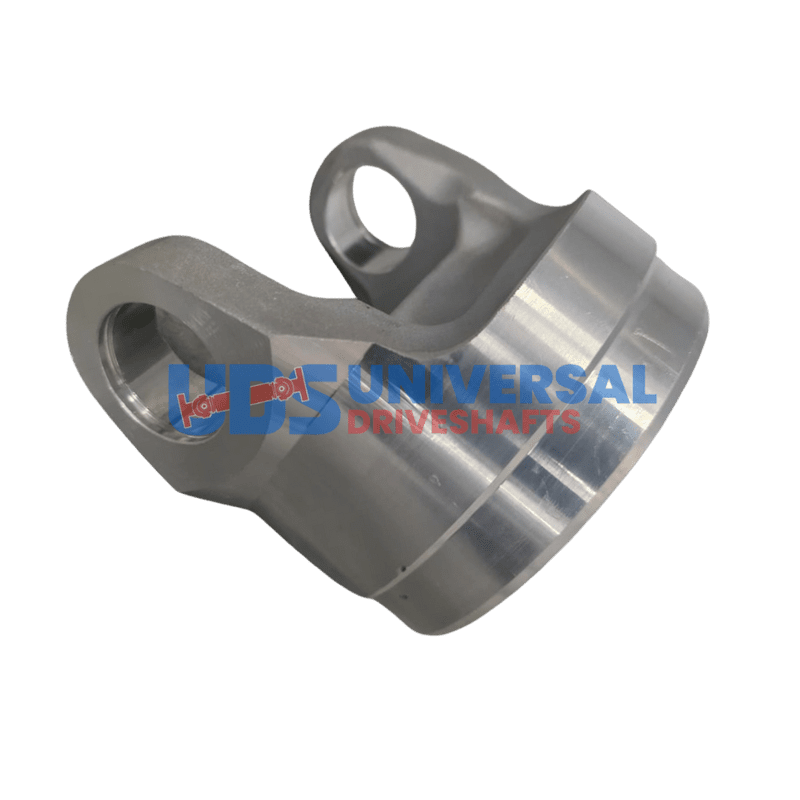

ATY1550-500 UDS 1550 Series 6061-T6 Aluminum Weld Yoke for 5.000x0.125 Tube

The ATY1550-500 is a 1550 series weld yoke manufactured by UDS in 6061-T6 aluminum. The butt diameter is 4.757" and the centerline-to-weld dimension is 2.750". It is designed for 5.000" OD x 0.125" wall tube. Also referenced as part 5526-506A.

Specifications

• Part Number: ATY1550-500 (Ref: 5526-506A)
• Brand: UDS
• Series: 1550
• Material: 6061-T6 Aluminum
• Butt Diameter: 4.757"
• Center UJ to Weld: 2.750"
• Tube Diameter x Wall: 5.000 x 0.125"

When preparing the ATY1550-500 for welding, confirm tube OD is 5.000" and wall is 0.125". Note that the CL-to-weld dimension on this 1550-series yoke is 2.750" — shorter than the 3.000" found on the 1330, 1350, 1410, and 1480 variants in this family. This difference must be accounted for in driveshaft assembly length calculations. The 4.757" butt diameter is consistent across the ATY-500 family. The 1550 series provides higher torque capacity than 1480 and positions this yoke for heavy commercial driveline applications. The 6061-T6 aluminum construction reduces rotational mass at the tube-to-yoke transition. Confirm all U-joints and companion yokes on the driveshaft are rated 1550 series before ordering the ATY1550-500 — the cap dimensions of a 1550 joint differ from those of a 1480 or 1410 and are not interchangeable at the yoke ear interface.
