3526-506A Aluminum Weld Yoke 1350 , Fits : 5.000×0.125 Butt Dia: 4.757, Centerline To Weld: 3 Inch

ATY1350-500 UDS 1350 Series 6061-T6 Aluminum Weld Yoke for 5.000x0.125 Tube

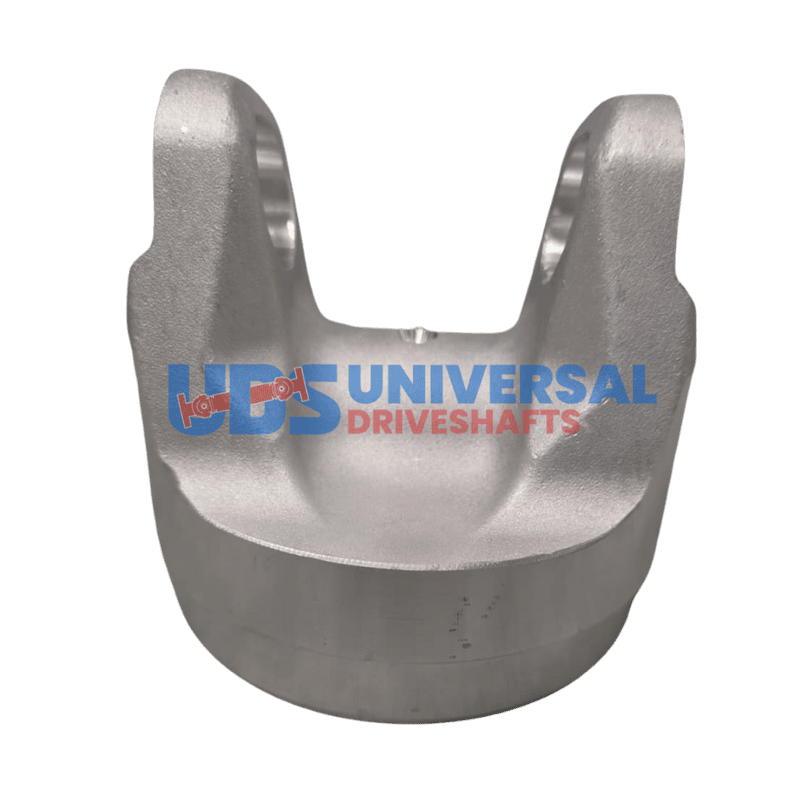

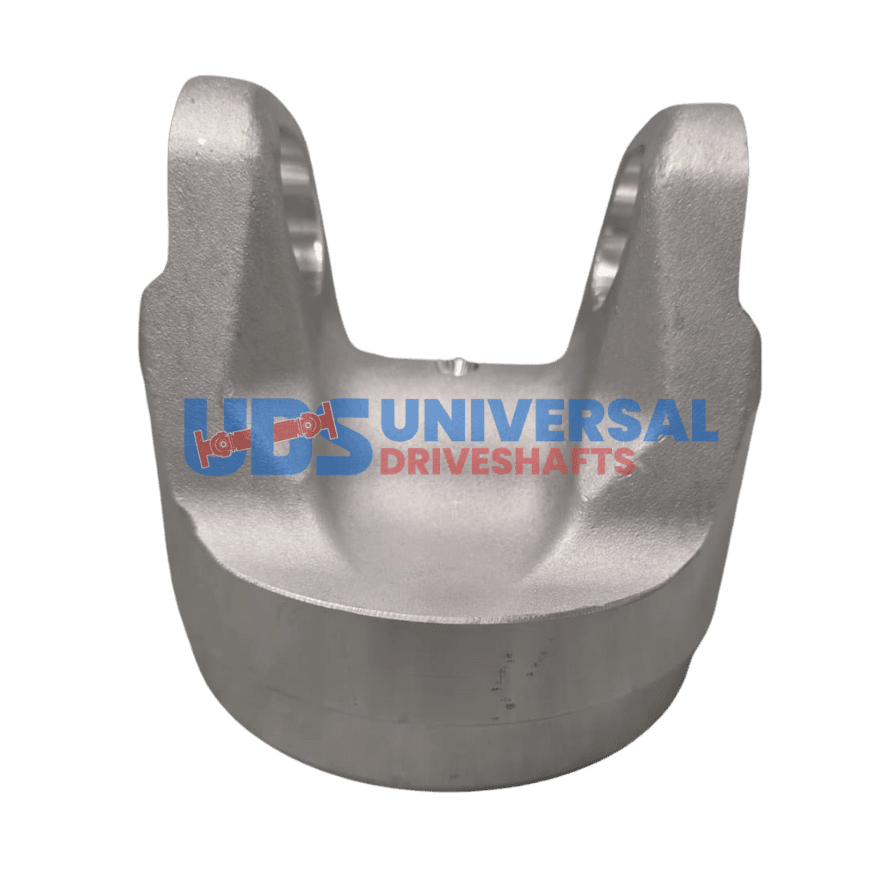

The ATY1350-500 is a 1350 series weld yoke manufactured by UDS in 6061-T6 aluminum. The butt diameter is 4.757" and the centerline-to-weld dimension is 3.000". It is designed for 5.000" OD x 0.125" wall tube. Also referenced as part 3526-506A.

Specifications

• Part Number: ATY1350-500 (Ref: 3526-506A)
• Brand: UDS
• Series: 1350
• Material: 6061-T6 Aluminum
• Tube Diameter: 5.000"
• Butt Diameter: 4.757"
• Center UJ to Weld: 3.000"
• Tube Diameter x Wall: 4.757 x 0.125"

When preparing the ATY1350-500 for welding, confirm tube OD is 5.000" and wall is 0.125". The 4.757" butt diameter is specific to this tube combination; substituting a different wall thickness alters the tube bore and changes the fit at the butt joint. Aluminum-to-aluminum welding with this 6061-T6 yoke requires the appropriate filler alloy and technique to preserve joint strength. The ATY1350-500 is the 1350-series variant of the 5.000" aluminum weld yoke family. The 1350 series provides higher torque capacity than 1310 and 1330 while falling below 1410. Confirm the entire driveshaft assembly is built to 1350 specifications before ordering. The ATY series (1330, 1350, 1410, 1480, 1550) all share the same butt diameter and tube specification for the 500 size; the series designation is the differentiating factor at the U-joint cap interface.
