4126-506A Aluminum Weld Yoke 1410, Fits : 5.000×0.125 Butt Dia: 4.757, Centerline To Weld: 3 Inch (Copy)

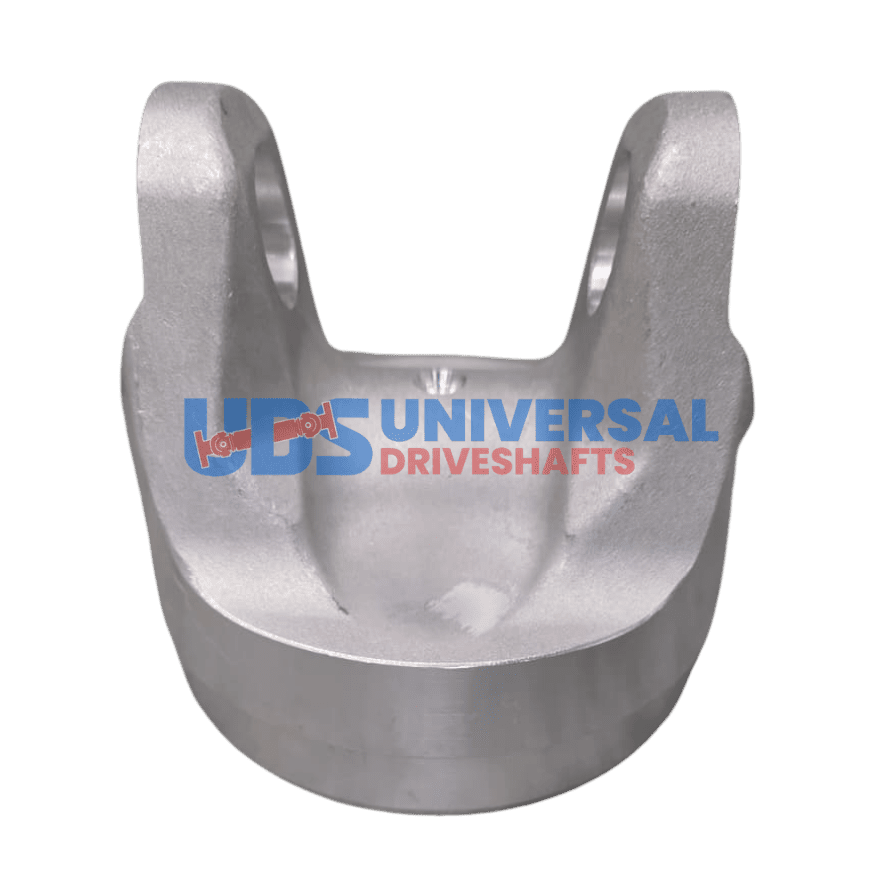

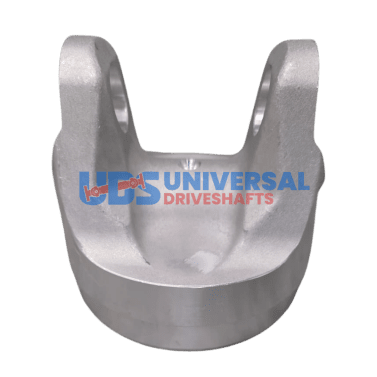

ATY1410-500 UDS 1410 Series 6061-T6 Aluminum Weld Yoke for 5.000x0.125 Tube

The ATY1410-500 is a 1410 series weld yoke manufactured by UDS in 6061-T6 aluminum. The butt diameter is 4.757" and the centerline-to-weld dimension is 3.000". It is designed for 5.000" OD x 0.125" wall tube. Also referenced as part 4126-506A.

Specifications

• Part Number: ATY1410-500 (Ref: 4126-506A)
• Brand: UDS
• Series: 1410
• Material: 6061-T6 Aluminum
• Tube Diameter: 5.000"
• Butt Diameter: 4.757"
• Center UJ to Weld: 3.000"
• Tube Diameter x Wall: 4.757 x 0.125"

When preparing the ATY1410-500 for welding, confirm the tube is 5.000" OD with 0.125" wall. The 4.757" butt diameter fits this tube specification. The 1410 series cap dimensions at the U-joint end of this yoke are larger than the 1330 or 1350 — confirm the U-joints and mating yokes are also 1410 series throughout the driveshaft assembly. The ATY1410-500 is the 1410-series variant of the 5.000" aluminum weld yoke family. The 6061-T6 aluminum construction reduces rotational inertia relative to steel; this is particularly beneficial at the ends of a long driveshaft where mass reduction has the greatest effect on balance. The 3.000" CL-to-weld dimension is consistent across the ATY series for this tube size. Compare against the ATY1330-500, ATY1350-500, ATY1480-500, and ATY1550-500 to select the correct series.
