Brand:

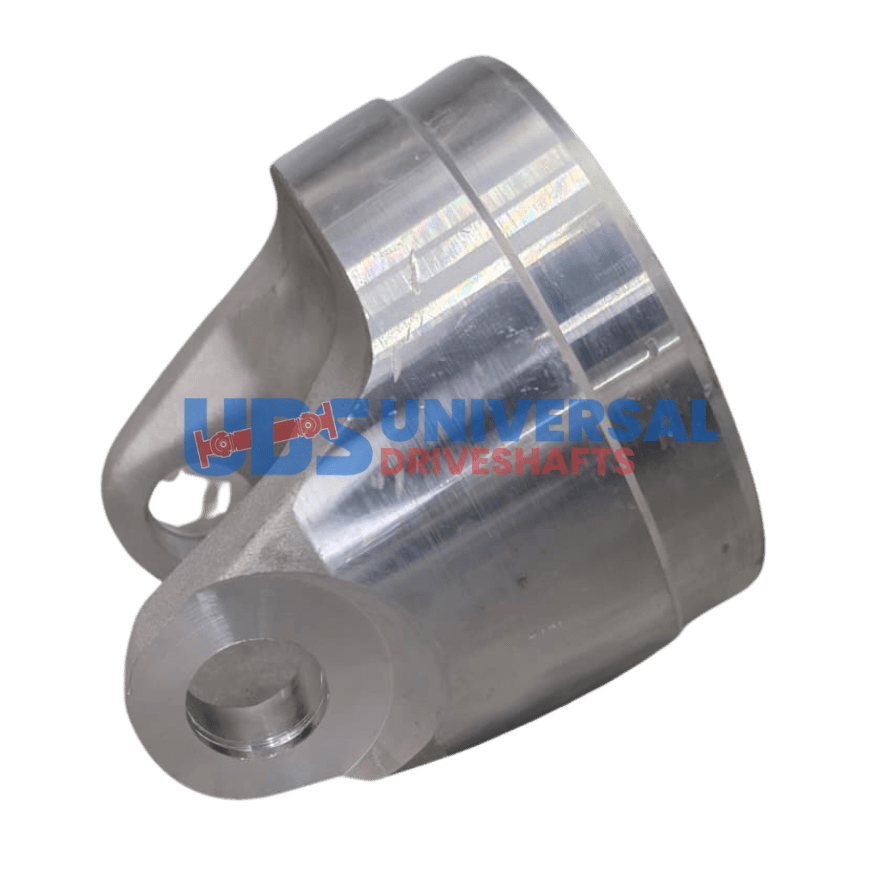

3326-506A Aluminum Weld Yoke 1330, Fits : 5.000×0.125 Butt Dia: 4.757, Centerline To Weld: 3 Inch
$40.40
21 in stock
Description
ATY1330-500 6061-T6 aluminum 1330 series weld yoke, 3.000″ C/U-joint to weld, fits 5.000″ OD x 0.125″ wall aluminum tube.
Full Description
- Part Number
- ATY1330-500 (cross: 3326-506A)
- Series
- 1330
- Material
- 6061-T6 Aluminum
- C/U-joint to Weld
- 3.000"
- Tube Dia x Wall
- 5.000" x 0.125"
6061-T6 aluminum is the standard choice for performance driveshaft yokes -- it reduces rotational inertia versus steel while maintaining adequate yield strength for street and mild off-road applications. On the 1330 series, the aluminum yoke is appropriate for applications where the original steel yoke was a weight and vibration concern. The 5.000" tube OD with 0.125" wall is a large-diameter, thin-wall aluminum section -- welding requires a TIG process with appropriate preheat; MIG on this wall thickness risks burn-through and heat-affected zone softening that reduces fatigue life. After welding, the assembly must be spun-balanced before installation. An out-of-balance aluminum shaft will develop fatigue cracks at the weld toe much sooner than an equivalent steel shaft. Pair with a 1330 series U-joint for a complete assembly.
Additional information
| Notes | 6061-T6 Aluminum |
|---|---|
| Series | 1330 |
| Material | ALUMINUM |
| Center u j to weld | 3.000″ |
| Brand | UDS |
| Tube dia wall | 4.757 x 0.125 |
