70-3-41X – Slip Yoke – SPL70 Series – 1.76″ Splines Dia – Center U Joint To End 9.279
$238.45
+50 in stock
Description

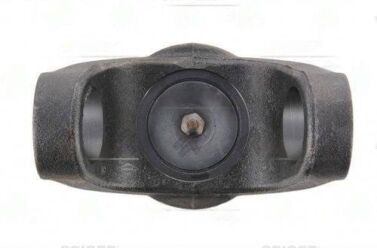

70-3-41X slip yoke, SPL70 series, 26/27 splines at 1.76″ bore diameter, 9.279″ center-to-end. Direct replacement for transmission output shaft interface.
Full Description
Built for Spicer, the 70-3-41X slip yoke provides the axial compliance your driveline needs to accommodate suspension movement without vibration or binding. This SPL70 series unit carries 26/27 splines at 1.76" diameter for a precise, rattle-free fit on the transmission output shaft.
Product Description
Slip yoke replacement is often overlooked during driveshaft service, yet a worn yoke is frequently the root cause of vibration complaints that return after U-joint replacement. The 70-3-41X restores the correct spline-to-bore clearance and presents an undamaged sliding surface to the extension housing seal, eliminating leak paths that develop with worn OEM yokes.
Part Details
| Detail | Specification |
|---|---|
| SKU | 70-3-41X |
| Driveshaft Series | SPL70 |
| Spline Count | 26/27 |
| Spline Bore Dia. | 1.76" |
| U-Joint Center to Yoke End | 9.279" |
| Fitment Notes | Spicer |
Series Compatibility
The SPL70 series U-joint cross bores must match the yoke ear dimensions of the 70-3-41X. Do not mix series -- a SPL70 slip yoke should be paired only with a SPL70 or compatible-series cross and companion yoke. Mismatched series results in incorrect snap ring grooves and potential joint separation under load.
Replacement Guidance
- Confirm 26/27-tooth count and 1.76" diameter match your transmission output shaft
- Measure center-to-end dimension if your application has tight length constraints
- Use assembly lube on splines during installation
- Reinstall transmission extension seal if it shows any sign of wear
- Phasing: reinstall driveshaft in the original orientation (mark before removal)
Why Universal Driveshafts
We specialize in driveline components across all series and vehicle types. The 70-3-41X is part of our standard inventory -- no waiting on special orders. Our team can cross-reference by vehicle year/make/model or by direct measurement to confirm the right part every time.
Additional information
| Center u joint to end | 9.279 |
|---|---|
| Notes | Spicer |
| Partn number | 70-3-41X |
| Series | SPL70 |
| Splines count | 26/27 |
| Splines dia | 1.76 |
