Brand:

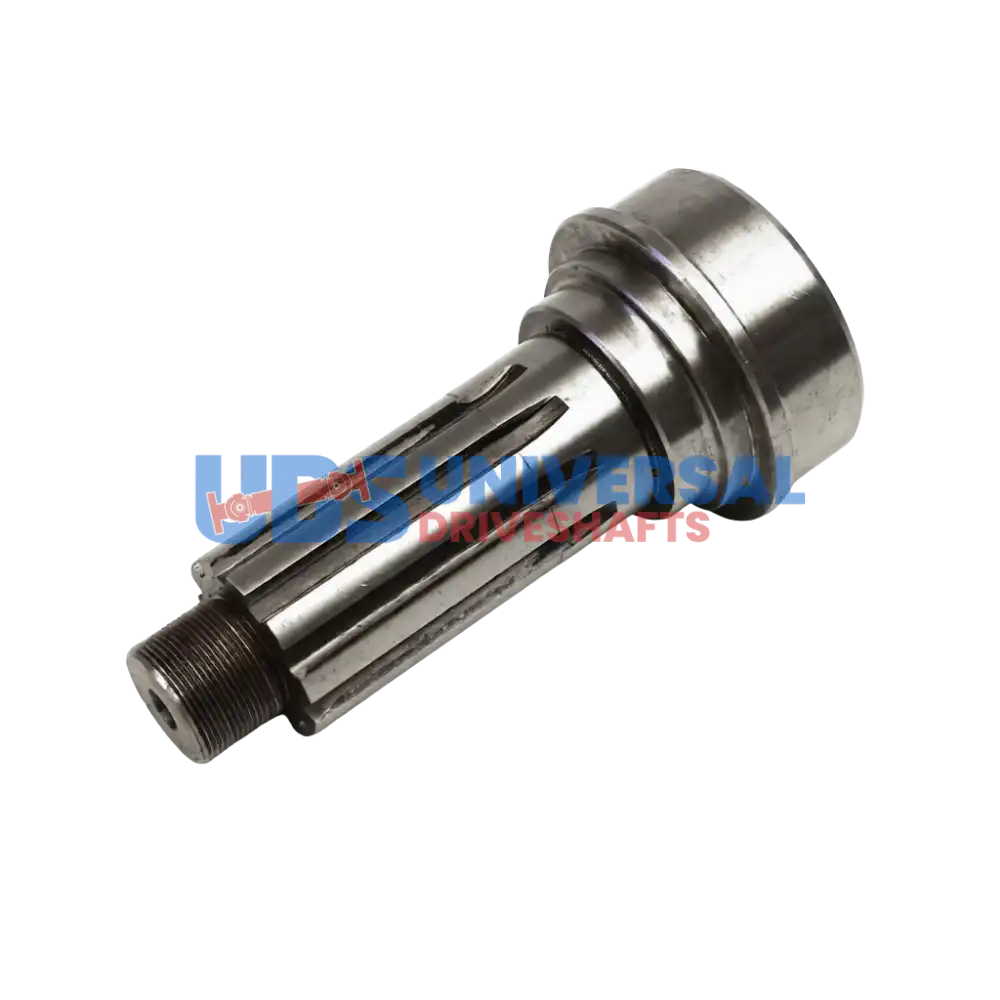

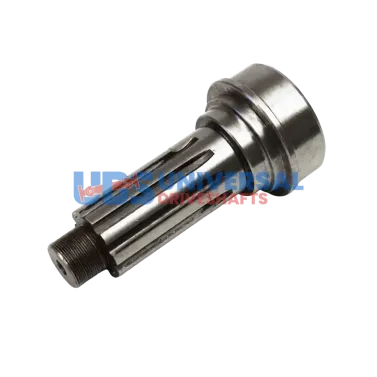

6-53-151 Splined Midship Tube Shaft Splines: 1.958×10 , Fits: 3.500 X .156 Tube
$67.73
7 in stock
13 People watching this product now!
Description
6-53-151 Midshaft Stub — 10 X 1.953 spline | 2.875″ spline length | 3.188″ butt dia | 5.156″ end-to-weld | fits 3.500 tube. Complete two-piece driveshaft center section. Verify spline and tube specs.
Full Description
The 6-53-151 midshaft stub is the center section of a two-piece driveshaft — it carries the center support bearing and bridges the front and rear shaft assemblies. Spline count, spline diameter, and butt diameter are all spec-specific. The 6-53-151 midshaft stub won't fit a different tube OD or a different output shaft spline, and substituting a close-but-not-exact part will produce vibration that traces directly back to this component.
6-53-151 Midshaft Stub — Spline & Tube Dimensions
The 6-53-151 midshaft stub specs: 10 X 1.953 spline | 2.875" spline length | 3.188" butt dia | 5.156" end-to-weld | fits 3.500 tube. The butt diameter determines how the stub seats in the driveshaft tube — too loose and the weld joint runs off-center. Spline length determines engagement depth on the output shaft; short engagement under high torque loads damages the shaft splines before the stub shows any sign of wear.
When replacing a midshaft stub, measure both the tube ID and the output shaft spline count before ordering. Check runout on the new 6-53-151 midshaft stub before welding — a stub with more than 0.005" runout will never balance correctly regardless of how many weights you add.
Key Features
- Spline: 10 X 1.953 — verify against output shaft
- Spline length: 2.875" — full engagement required under load
- Butt dia: 3.188" — must seat concentrically in driveshaft tube
- End-to-weld: 5.156" — factors into total shaft length
- Tube fit: 3.500 — designed for this tube specification
- Bearing dia: 1.968" — matches center support bearing inner race
- Brand: UDS
Specifications
- SKU: 6-53-151
- Brand: UDS
- Spline: 10 X 1.953
- Spline Length: 2.875"
- Butt Dia: 3.188"
- End to Weld: 5.156"
- Tube Fit: 3.500
- Bearing Dia: 1.968"
Additional information
| Tube dia | 3.500 |
|---|---|
| Tube wall | 0.156 |
| Butt dia | 3.188 |
| Splines length | 2.875 |
| End to weld | 5.156 |
| Bearing dia | 1.968 |
| Brand | UDS |
| Splines count dia | 10 X 1.953 |
