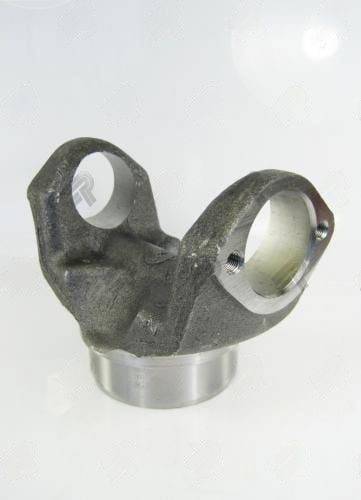

6.3-28-17 – Weld Yokes – 1760 Series – Butt Dia 3.734″ – Tube Dia Wall 4.095X0.180

Q: What is the 1760 series and where does it sit in the Spicer hierarchy?
A: The 1760 series is positioned between the 1710 and 1810 in Spicer's on-highway commercial drivetrain catalog. It uses a U-joint cap size that is larger than the 1710 but smaller than the 1810, making it appropriate for medium-heavy commercial vehicles: Class 6-7 trucks, specialty vocational equipment, and heavy transfer case applications in work trucks.

Q: The 4.095" tube OD is unusual -- is this a metric dimension?
A: Yes -- 4.095" is the inch equivalent of 104mm, a metric tube size used on European-market commercial vehicles and some North American commercial platforms that source tube in metric dimensions. The matching butt diameter of 3.734" is also metric-derived (approximately 95mm). Always confirm your tube is this exact metric OD before ordering -- the 4.095" butt is not compatible with 4.000" or 4.125" SAE inch tube sizes.

Q: What U-joint is required for this weld yoke?
A: The 1760-series U-joint, available through the Spicer commercial parts catalog. Do not substitute 1710-series joints -- the 1760 cap geometry is slightly larger and a 1710 joint will sit loose in the 1760 yoke ear bore, causing immediate bearing failure.
