5-3-2261KX – Slip Yoke – 1610 Series – 2.00″ Splines Dia – Center U Joint To End 10.812
$120.48
+50 in stock
18
People watching this product now!
Description
5-3-2261KX UDS 1610 series slip yoke. Splines: 16, CJ-to-end: 10.812″. Verify stop shaft spline count and diameter before ordering.
Full Description

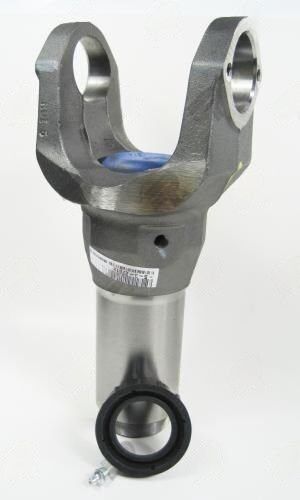

5-3-2261KX UDS 1610 Slip Yoke
The 5-3-2261KX is a 1610 series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline specification is 16; verify this matches the stop shaft before ordering. The centerline-to-end dimension is 10.812 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. The 1610 series ranks above 1550 in torque capacity, with a 1.875-inch cap diameter, suited for medium-heavy-duty trucks.
Specifications
- Part Number: 5-3-2261KX
- Brand: UDS
- Series: 1610
- Center u joint to end: 10.812
- Splines count: 16
- Splines dia: 2.00
Fitment & Installation Notes
When selecting the 5-3-2261KX, verify the stop shaft spline count and diameter match the 16 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Slip Yoke in 1610 and adjacent series configurations.
Additional information
| Center u joint to end | 10.812 |
|---|---|
| Partn number | 5-3-2261KX |
| Series | 1610 |
| Splines count | 16 |
| Splines dia | 2.00 |
