4853-1035 – Stub Midship Shaft – 10 X 1.750 Splines – Bearing Dia 1.772″ – Tube Dia Wall 3.500×0.095
$119.24
1 in stock
Description

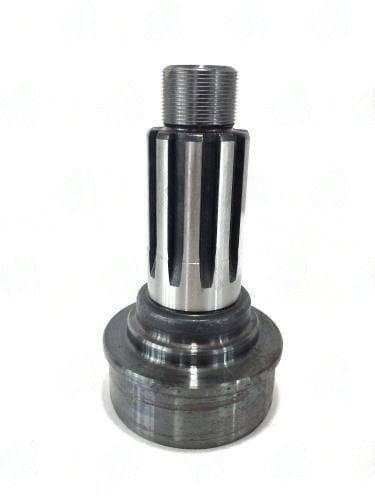

4853-1035 midship stub shaft with 10 X 1.750 spline and 1.772″ bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Stub Shaft 4853-1035 -- Bearing Journal 1.772", 10 X 1.750" Spline
The 4853-1035 stub shaft is the linchpin of a correctly functioning two-piece driveshaft. Its 1.772" bearing journal determines which center support bearing you can use, while the 10 X 1.750" spline section (with 2.500" engagement) connects to the companion slip yoke or fixed yoke on the adjacent shaft section. The 3.321" butt end welds to 3.500 OD tube to complete the assembly.
Dimensional Data
| Measurement | Value |
|---|---|
| SKU | 4853-1035 |
| Spline (Count x Dia) | 10 X 1.750" |
| Spline Length | 2.500" |
| Bearing Journal | 1.772" |
| Butt Dia | 3.321" |
| End to Weld | 4.193" |
| Tube | 3.500 OD x 0.095" wall |
| Style | FIXED |
Selection Guide -- When to Use This Part
- You are building or replacing a two-piece driveshaft with a 1.772" center support bearing.
- Your companion yoke has a 10 X 1.750" spline bore.
- Your tube OD is 3.500.
- Your layout requires a fixed-style stub shaft (no slip travel -- used where a separate slip yoke is installed upstream).
Carrier Bearing Installation
The center support bearing presses onto the 1.772" journal. Always use an arbor press and a pilot sleeve that contacts only the bearing inner race -- pressing on the outer race will preload the bearing and cause premature failure. After pressing, confirm the bearing spins freely and has less than 0.001" of axial play.
Weld End
The 3.321" butt diameter accepts the driveshaft tube. Weld with even bead placement and balanced heat input to minimize distortion. Check the journal runout after welding.
Additional information
| Bearing dia | 1.772 |
|---|---|
| Butt dia | 3.321 |
| End to weld | 4.193 |
| Partn number | 4853-1035 |
| Splines count dia | 10 X 1.750 |
| Splines length | 2.500 |
| Tube dia | 3.500 |
| Tube wall | 0.095″ |
| Style | FIXED |
