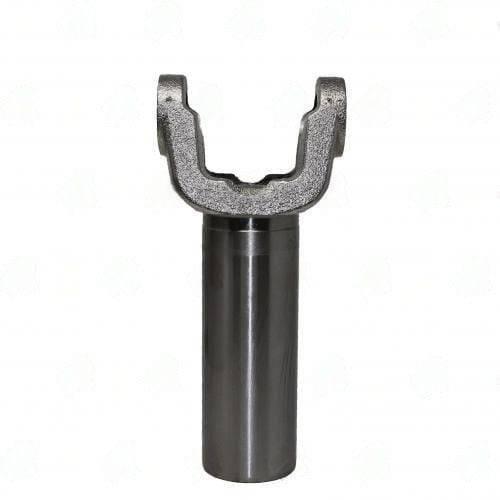

4103-431 – Transmission Yokes – 1410 Series – 43 X 1.654 Splines – 2.457″ Hub Dia
$86.89
1 in stock
Description
4103-431 1410 series transmission slip yoke, 43-spline x 1.654″ diameter, 9.153″ centerline to U-joint, 2.457″ hub diameter.
Full Description
4103-431 -- 1410 Series Transmission Yoke, 43-Spline x 1.654"
The 43-spline x 1.654" profile on this yoke is a high-count spline specification that distributes torque load across more teeth than the common 30-35 spline configurations -- each tooth carries proportionally less load, reducing spline fatigue in high-torque cycling applications. At a 2.457" hub diameter, this is also one of the largest hub OD yokes in the 1410 series range, indicating an application with a very large transmission output bore.
The 9.153" C/U-joint to end provides extensive slip travel. Verify this dimension is correct for your application -- a yoke that is too long will bottom out in the transmission bore at minimum suspension extension, preventing full spline engagement. No counterbore is used; hub engagement alone provides centering. Pair with a 1410 series U-joint (1.188" cap diameter) and confirm the mating driveshaft assembly is also 1410 rated.
Additional information
| Center u joint to end | 9.153 |
|---|---|
| Counter bore dia | |
| Hub dia | 2.457 |
| Partn number | 4103-431 |
| Series | 1410 |
| Splines count dia | 43 X 1.654 |
