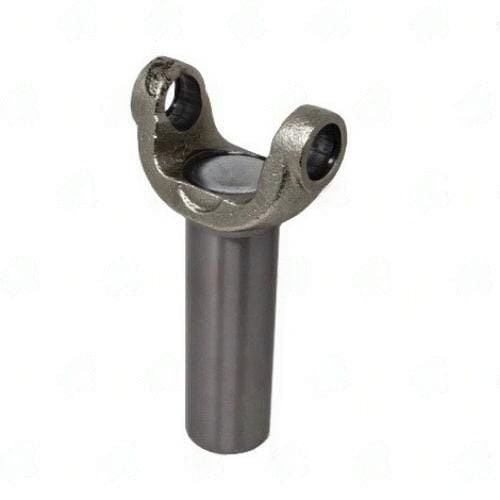

The 4103-342 Transmission Slip Yoke fits various 34-spline transmissions for Ford, Lincoln, and Mercury, including the 5R110W and some transfer cases. It features a 1410 series design with an outside snap ring style. Key specifications include a U-joint lock-up of 4.188 inches, a bearing cap diameter of 1.188 inches, and a centerline to end of spline measurement of 8.110 inches. The barrel diameter is 2.086 inches, and the spline outside diameter is 1.551 inches, with 34 splines (33 with blind spots). Made from steel and nickel-plated for durability.
4103-342
SKU:
4103-342
$66.32
11
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders
Description
Additional information
Weight | 10 lbs |
---|---|
Dimensions | 25 × 18 × 10 in |
Center u joint to end |
8.110 |
Counter bore dia |
0 |
Hub dia |
2.086 |
Notes |
Nickel Plated |
Partn number |
4103-342 |
Remaining stock |
>10 |
Series |
1410 |
Splines count dia |
33/34 X 1.551 |
