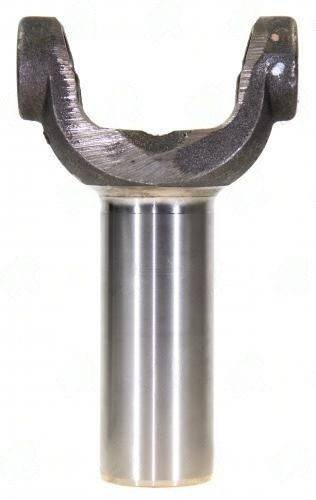

4103-311 – Transmission Yokes – 1410 Series – 30/31 X 1.391 Splines – 1.886″ Hub Dia
$83.84
14
People watching this product now!
Description
4103-311 Transmission Yoke — 1410 series, 30/31 X 1.391 spline | 1.886″ hub | 6.650″ CJ-to-end. Replaces Dana 3-3-5981X, Ford. Professional direct replacement.
Full Description
The 4103-311 transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 1410 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.
4103-311 Transmission Yoke — 1410 Series Specs & Tailshaft Fit
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 4103-311 transmission yoke specs: 30/31 X 1.391 spline | 1.886" hub | 6.650" CJ-to-end. Compatible with: Replaces Dana 3-3-5981X, Ford. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.
After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the 4103-311 transmission yoke. Not all 1410 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.
Key Features
- Series: 1410 — HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 30/31 X 1.391 — must match transmission tailshaft
- Hub dia: 1.886" — determines spline engagement depth
- CJ-to-end: 6.650" — affects driveshaft working length
- Compatible with: Replaces Dana 3-3-5981X, Ford
- Brand: UDS
Specifications
- SKU: 4103-311
- Brand: UDS
- Series: 1410
- Spline: 30/31 X 1.391
- Hub Dia: 1.886"
- CJ to End: 6.650"
- Notes: Replaces Dana 3-3-5981X, Ford
Additional information
| Center u joint to end |
6.650 |
|---|---|
| Counter bore dia |
0 |
| Hub dia |
1.886 |
| Notes |
Replaces Dana 3-3-5981X, Ford |
| Partn number |
4103-311 |
| Series |
1410 |
| Splines count dia |
30/31 X 1.391 |
